SPA-010-26-005-SMA
lmages are for reference only.SPA-010-26-005-SMA
POWER AMP 50MHZ-1GHZ P1DB SMA
DatasheetModule, SMA Connectors
79,997 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC General Purpose 50MHz ~ 1GHz Module
SPA-010-26-005-SMA
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Fairview Microwave |
| Series | - |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Frequency | 50MHz ~ 1GHz |
| P1dB | 28dBm |
| Gain | 26dB |
| Noise Figure | 5dB |
| RF Type | General Purpose |
| Voltage - Supply | 11V ~ 15V |
| Current - Supply | 450mA |
| Test Frequency | - |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Supplier Device Package | Module |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

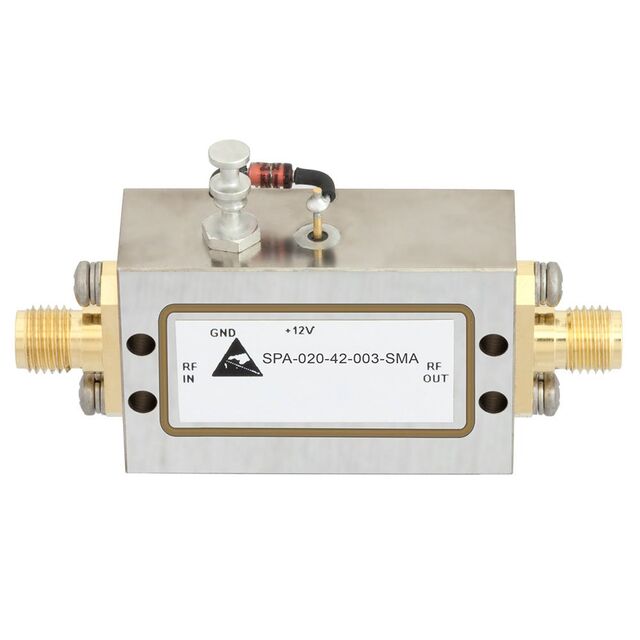

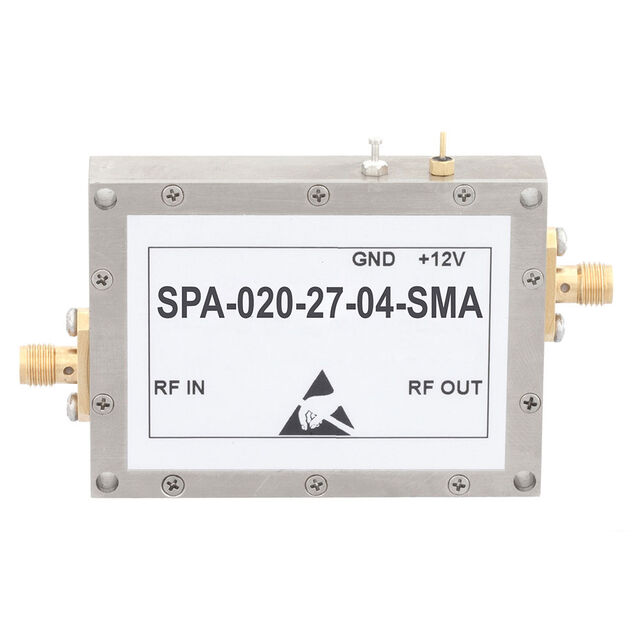

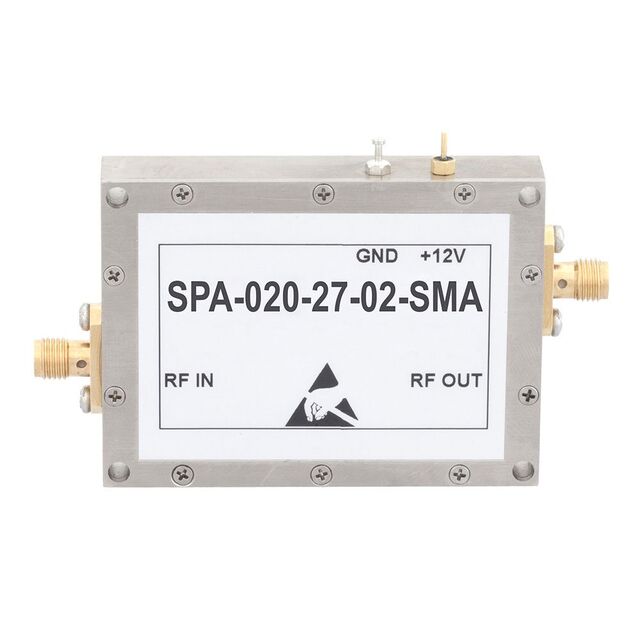

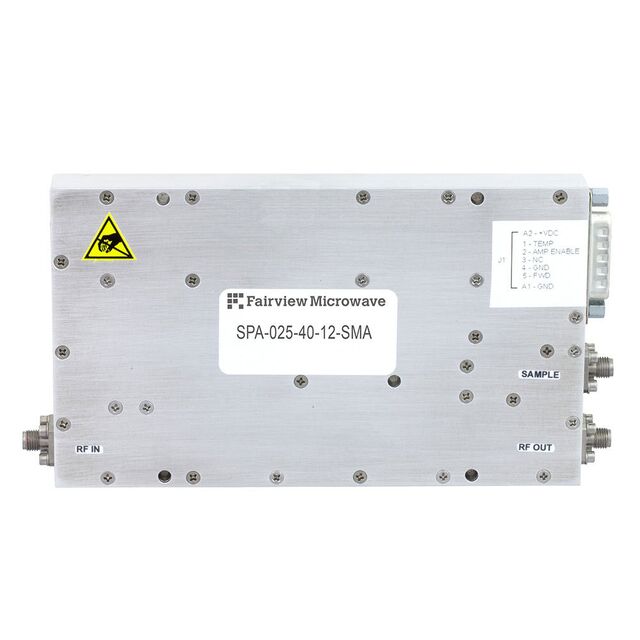

| Part Number | SPA-020-27-02-SMA | SPA-020-27-04-SMA | SPA-020-42-003-SMA | SPA-025-40-12-SMA |
| Manufacturer | Fairview Microwave | Fairview Microwave | Fairview Microwave | Fairview Microwave |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | POWER AMP 1000MHZ-2GHZ P1DB SMA | POWER AMP 1000MHZ-2GHZ P1DB SMA | BROADBAND AMP TYPE SMA 500MHZ-2G | POWER AMP 800MHZ-2.5GHZ P1DB SMA |
| Series | - | - | - | - |
| Packaging | Bag | Bag | Bag | Bag |
