SPA11N80C3XKSA1

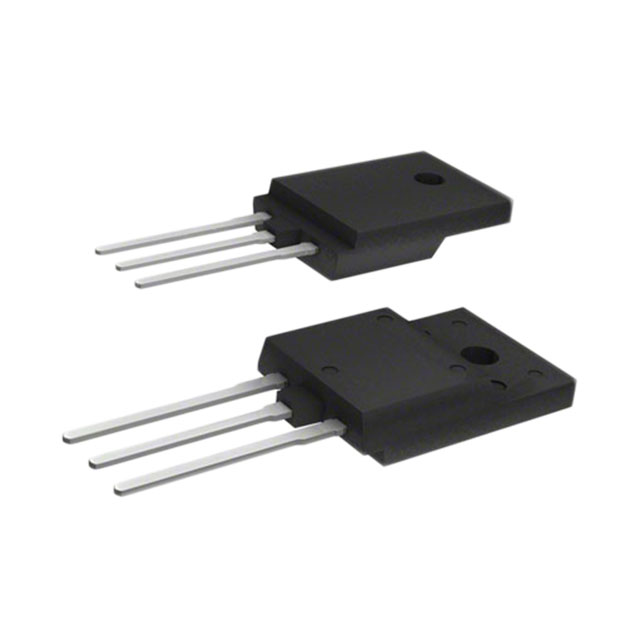

lmages are for reference only.SPA11N80C3XKSA1
MOSFET N-CH 800V 11A TO220-FP
DatasheetTO-220-3 Full Pack
46,524 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 800 V 11A (Tc) 34W (Tc) Through Hole PG-TO220-3-31
SPA11N80C3XKSA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | CoolMOS™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 450mOhm @ 7.1A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 680µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1600 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 34W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO220-3-31 |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | SPA11N80 |
| Gate Charge (Qg) (Max) @ Vgs | 85 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SPA11N80C3XKSA2 | SPA11N60C3IN | SPA11N60C3XKSA1 | SPA11N60CFDXKSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 800V 11A TO220-3 | MOSFET N-CH 650V 11A TO220-3-31 | MOSFET N-CH 600V 11A TO220-3 | MOSFET N-CH 600V 11A TO220-3 |
| Series | CoolMOS™ | CoolMOS™ | CoolMOS™ | CoolMOS™ |
| Packaging | Tube | Tube | Tube | Tube |
