Product CatalogPart Number
SPB1007-R17M
Manufacturer
Bourns Inc.Description
IND POWER BEAD 175NH 61A SHLD
Datasheet
DatasheetPackage
Nonstandard
In Stock
56,820 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SPB1007-R17M
SPB1007-R17M
lmages are for reference only.Payment Methods
Delivery Services
175 nH Shielded Inductor 61 A 0.35mOhm Max Nonstandard
Quick Inquiry
SPB1007-R17M
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | SPB1007 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 175 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 61 A |
| Current - Saturation (Isat) | 66A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.35mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SPB1007-R12M | SPB1007-R15M | SPB1007-R22M | SPB1007-R23M |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IND POWER BEAD 115NH 61A SHLD | IND POWER BEAD 150NH 61A SHLD | IND POWER BEAD 215NH 61A SHLD | IND POWER BEAD 230NH 61A SHLD |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
SPB1005-R10M
Bourns Inc.
SPB1005-R12M
Bourns Inc.
SPB1005-R12M
Bourns Inc.
SPB1005-R15M
Bourns Inc.
SPB1005-R22M
Bourns Inc.
SPB1007-R12M
Bourns Inc.
SPB1007-R15M
Bourns Inc.

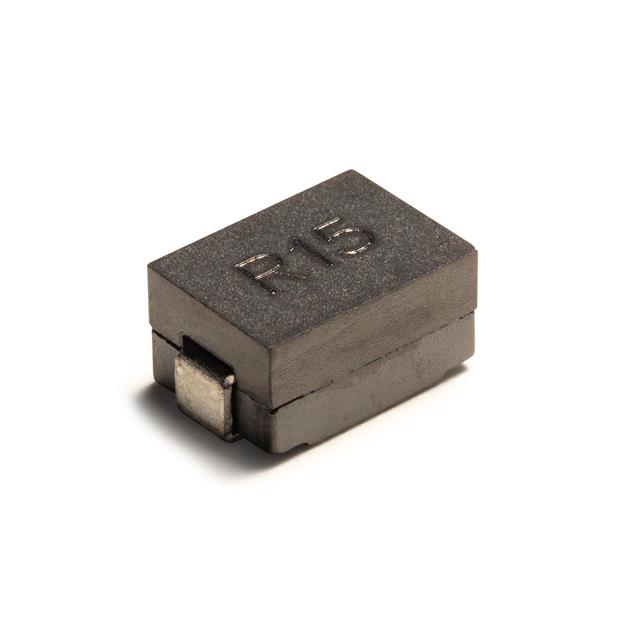

SPB1007-R22M
Bourns Inc.
SPB1007-R23M
Bourns Inc.
SPB1007-R27M
Bourns Inc.
SPB1007-R30M
Bourns Inc.
SPB1012-R10Y
Bourns Inc.

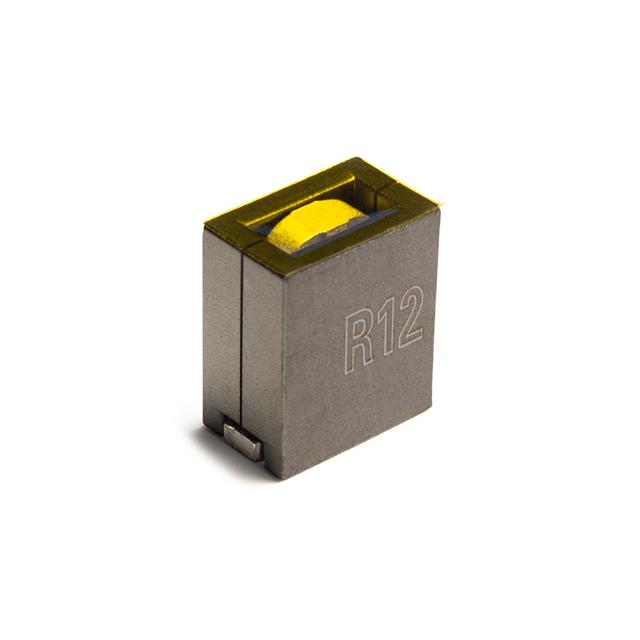

SPB1012-R12Y
