SPD02N50C3

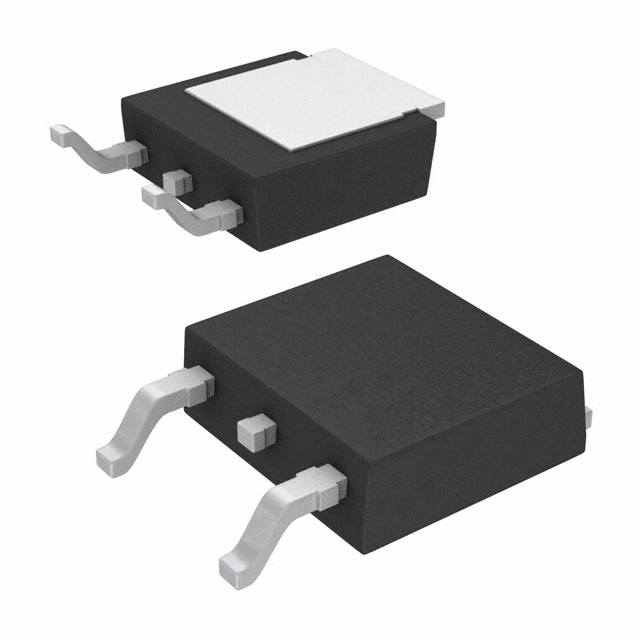

lmages are for reference only.SPD02N50C3
MOSFET N-CH 560V 1.8A TO252-3
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
24,358 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 560 V 1.8A (Tc) 25W (Tc) Surface Mount PG-TO252-3-11
SPD02N50C3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | CoolMOS™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 560 V |
| Current - Continuous Drain (Id) @ 25°C | 1.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 1.1A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 80µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 190 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 25W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TO252-3-11 |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | SPD02N |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SPD02N50C3BTMA1 | SPD01N60C3BTMA1 | SPD02N60C3BTMA1 | SPD02N60S5BTMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ||||
| Description | LOW POWER_LEGACY | MOSFET N-CH 650V 800MA TO252-3 | MOSFET N-CH 650V 1.8A TO252-3 | MOSFET N-CH 600V 1.8A TO252-3 |
| Series | CoolMOS™ | CoolMOS™ | CoolMOS™ | CoolMOS™ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
