Product CatalogPart Number
SPM1004-1V0C
Manufacturer
Sumida America Components Inc.Description
DC DC CONVERTER 1V
Datasheet
DatasheetPackage
73-BLGA Module
In Stock
85,385 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SPM1004-1V0C
SPM1004-1V0C
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 1V 6A 9V - 15V Input
Quick Inquiry
SPM1004-1V0C
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Sumida America Components Inc. |
| Series | SPM1004 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 15V |
| Voltage - Output 1 | 1V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 86.6% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 73-BLGA Module |
| Size / Dimension | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) |
| Supplier Device Package | 73-LGA (15.2x9.2) |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

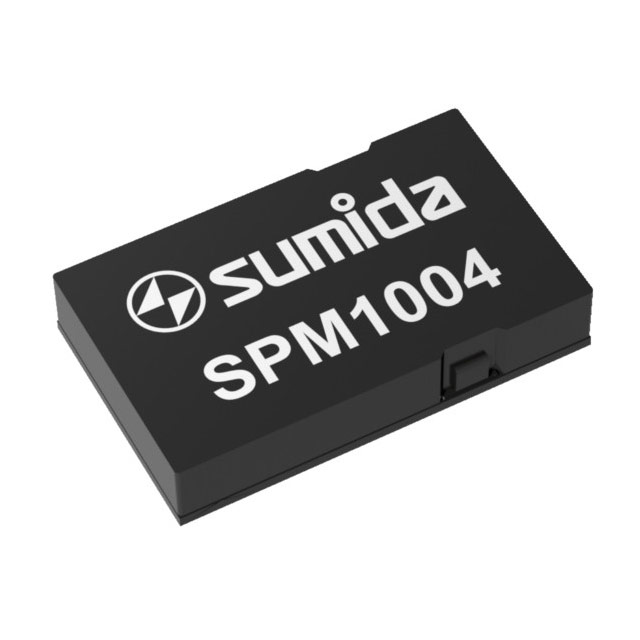

| Part Number | SPM1004-1V2C | SPM1004-1V5C | SPM1004-3V3C | SPM1004-5V0C |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 1.2V | DC DC CONVERTER 1.5V | DC DC CONVERTER 3V | DC DC CONVERTER 5V |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
