Product CatalogPart Number
SPNH050.X
Manufacturer
Littelfuse Inc.Description
1500VDC 50 AMP PHOTOVOLTAIC FUSE
Datasheet
DatasheetPackage
Rectangular, Blade
In Stock
75,442 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SPNH050.X
SPNH050.X
lmages are for reference only.Payment Methods
Delivery Services
50A 1.5 kVDC Fuse Rectangular Requires Holder
Quick Inquiry
SPNH050.X
Specifications
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | POWR-GARD® SPNH |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Rectangular |
| Current Rating (Amps) | 50A |
| Voltage Rating - AC | - |
| Response Time | Fast Blow |
| Applications | Solar (Photovoltaic) |
| Features | - |
| Class | - |
| Approval Agency | CE, gPV, IEC, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 30kA |
| Package / Case | Rectangular, Blade |
| Size / Dimension | 5.165" L x 2.008" W x 2.008" H (131.20mm x 51.00mm x 51.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 1.5 kVDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 800.0 |
| DC Cold Resistance | 0.00395 Ohms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SPNH050.XXDE | SPNH050.XXDL | SPNH063.X | SPNH063.XXDE |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1500VDC 50 AMP PHOTOVOLTAIC FUSE | 1500VDC 50 AMP PHOTOVOLTAIC FUSE | 1500VDC 63 AMP PHOTOVOLTAIC FUSE | 1500VDC 63 AMP PHOTOVOLTAIC FUSE |
| Series | POWR-GARD® SPNH | POWR-GARD® SPNH | POWR-GARD® SPNH | POWR-GARD® SPNH |
| Packaging | Box | Box | Box | Box |
Customers Also Interested in
Recommended Products
SPNH050.XXDE
Littelfuse Inc.
SPNH050.XXDL
Littelfuse Inc.
SPNH063.X
Littelfuse Inc.
SPNH063.XXDE
Littelfuse Inc.

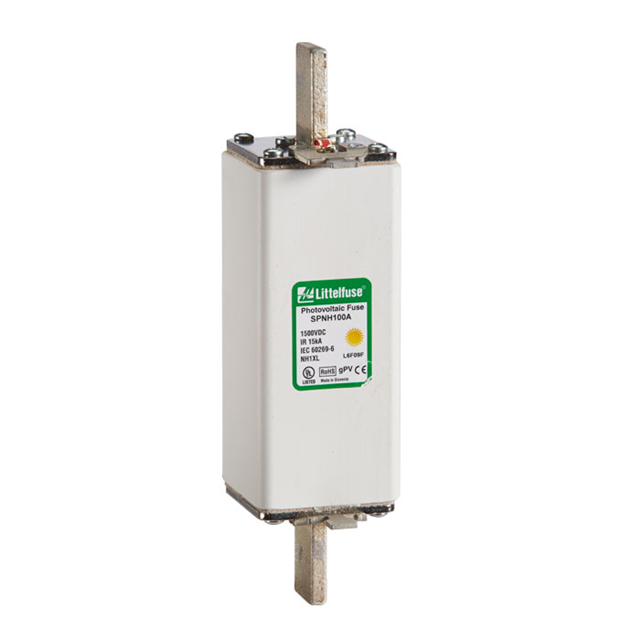

SPNH063.XXDEMS
