SQ24S10050-PS00G
lmages are for reference only.SQ24S10050-PS00G
DC DC CONVERTER 5V 50W
Datasheet8-SMD Module, 1/8 Brick
43,496 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 10A 18V - 36V Input
SQ24S10050-PS00G
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | SemiQ™ SQ24 (50W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 50 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.27" H (58.4mm x 22.9mm x 7.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | SQ24S10050 |
| Voltage - Isolation | 2 kV |
| Product Attribute | |
|
|
|
| Part Number | SQ24S10050-NS00G | SQ24S10050-NS0S | SQ24S10050-PS00G | SQ24S15033-NS00G |
| Manufacturer | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |

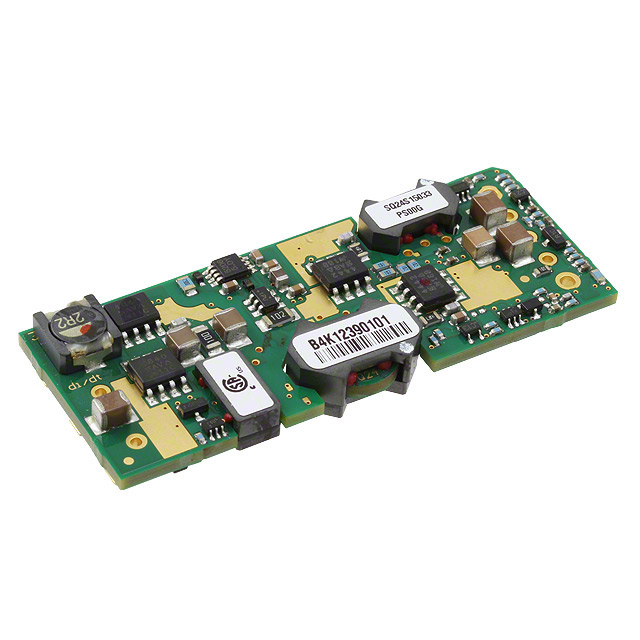

| Description | DC DC CONVERTER 5V 50W | DC DC CONVERTER 5V 50W | DC DC CONVERTER 5V 50W | DC DC CONVERTER 3.3V 50W |
| Series | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
