SQ24T08060-PAA0G

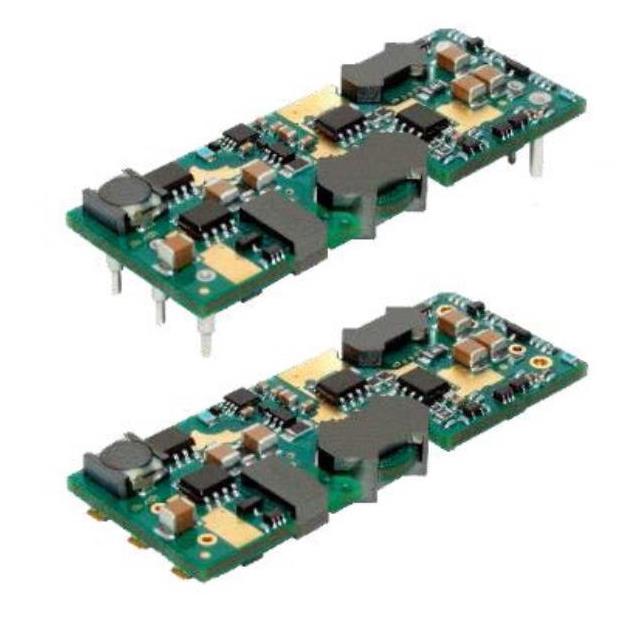

lmages are for reference only.SQ24T08060-PAA0G
DC DC CONVERTER 6V 48W
Datasheet8-DIP Module, 1/8 Brick
45,285 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 6V 8A 18V - 36V Input
SQ24T08060-PAA0G
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | SemiQ™ SQ24 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8A |
| Power (Watts) | 48 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.32" H (58.4mm x 22.9mm x 8.1mm) |
| Supplier Device Package | Eighth Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | SQ24T08060 |
| Voltage - Isolation | 2 kV |
| Product Attribute |  |
|
|
|

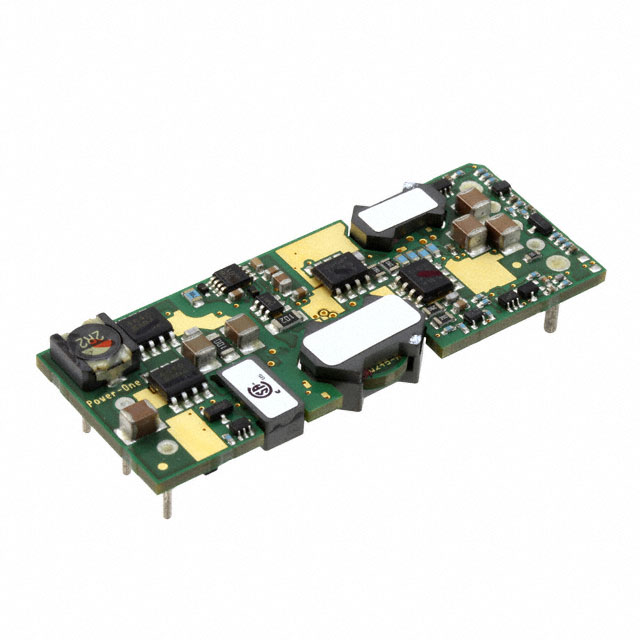

| Part Number | SQ24T08060-PBA0G | SQ24T03150-NBA0G | SQ24T03150-NEC0 | SQ24T03150-NEC0G |
| Manufacturer | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 6V 48W | DC DC CONVERTER 15V 50W | DC DC CONVERTER 15V 50W | DC DC CONVERTER 15V 50W |
| Series | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
