SQ3427EV-T1_BE3

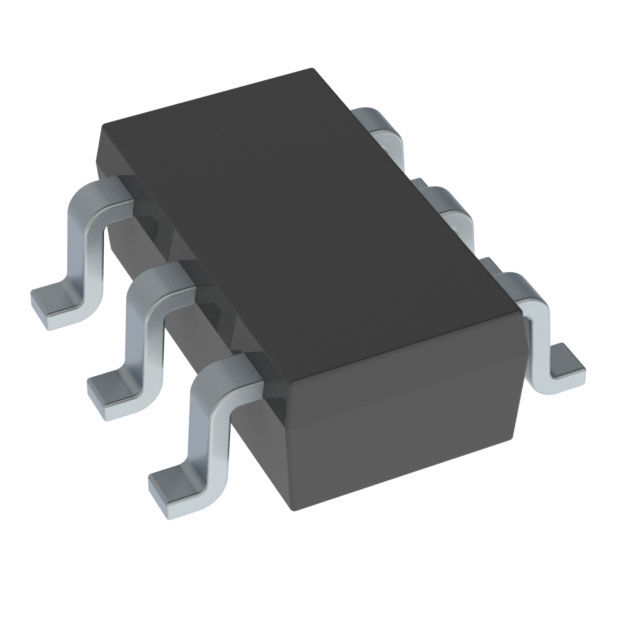

lmages are for reference only.SQ3427EV-T1_BE3
MOSFET P-CH 60V 5.3A 6TSOP
DatasheetSOT-23-6 Thin, TSOT-23-6
47,492 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 60 V 5.3A (Tc) 5W (Tc) Surface Mount 6-TSOP
SQ3427EV-T1_BE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 5.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 95mOhm @ 4.5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1000 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 5W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-TSOP |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Base Product Number | SQ3427 |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SQ3427EV-T1_GE3 | SQ3425CEV-T1_GE3 | SQ3425EV-T1_BE3 | SQ3425EV-T1_GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET P-CH 60V 5.3A 6TSOP | MOSFET P-CH 20V 7.4A 6-TSOP | MOSFET P-CH 20V 7.4A 6-TSOP | MOSFET P-CHANNEL 20V 7.4A 6TSOP |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
