SQ3985EV-T1_GE3
lmages are for reference only.SQ3985EV-T1_GE3
MOSFET 2P-CH 20V 3.9A 6TSOP
DatasheetSOT-23-6 Thin, TSOT-23-6
12,638 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 3.9A (Tc) 3W Surface Mount 6-TSOP
SQ3985EV-T1_GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 3.9A (Tc) |
| Rds On (Max) @ Id, Vgs | 145mOhm @ 2.8A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4.6nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 350pF @ 10V |
| Power - Max | 3W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
| Base Product Number | SQ3985 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

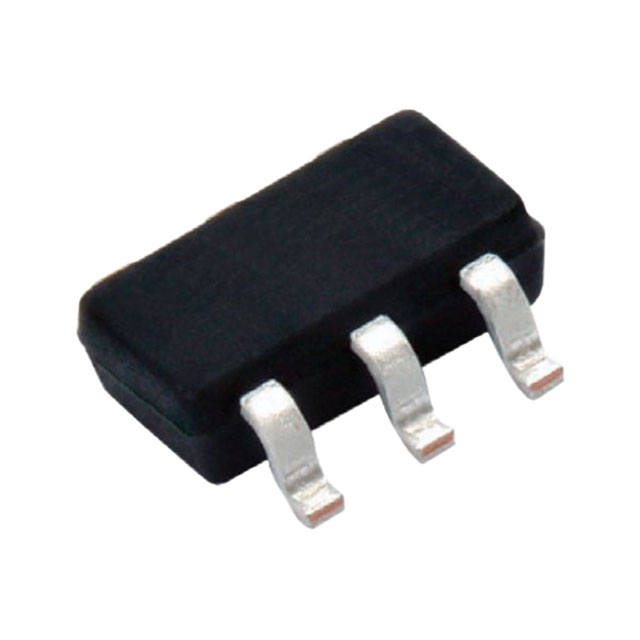

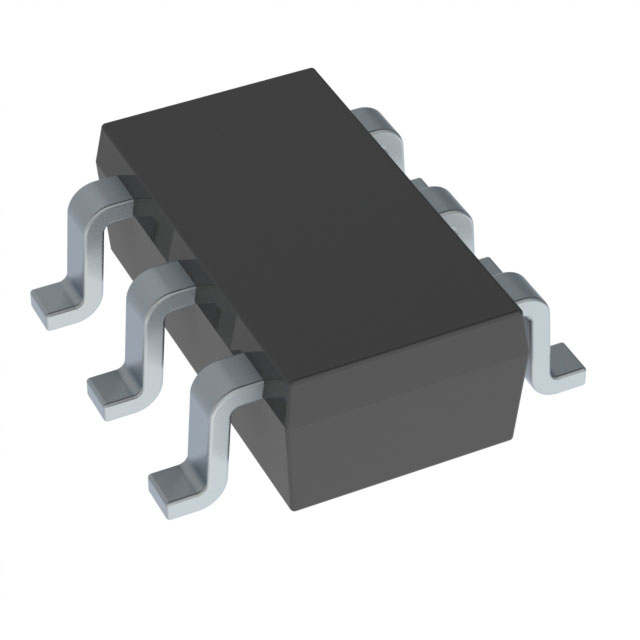

| Part Number | SQ3985EV-T1_BE3 | SQ3987EV-T1_GE3 | SQ3989EV-T1_BE3 | SQ3989EV-T1_GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET 2P-CH 20V 3.9A 6TSOP | MOSFET 2P-CH 30V 3A 6TSOP | MOSFET 2P-CH 30V 2.5A 6TSOP | MOSFET 2P-CH 30V 2.5A 6TSOP |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
