Product CatalogPart Number
SQ7415AEN-T1_BE3
Manufacturer
Vishay SiliconixDescription
MOSFET P-CH 60V 16A 1212-8
Datasheet
DatasheetPackage
PowerPAK® 1212-8
In Stock
88,066 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

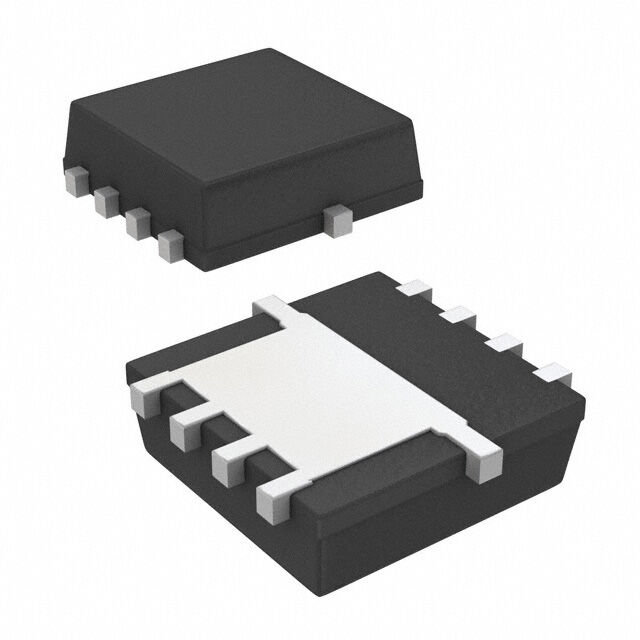

SQ7415AEN-T1_BE3
SQ7415AEN-T1_BE3
lmages are for reference only.Payment Methods
Delivery Services
P-Channel 60 V 16A (Tc) 53W (Tc) Surface Mount PowerPAK® 1212-8
Quick Inquiry
SQ7415AEN-T1_BE3
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 5.7A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1385 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 53W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® 1212-8 |
| Package / Case | PowerPAK® 1212-8 |
| Base Product Number | SQ7415 |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|

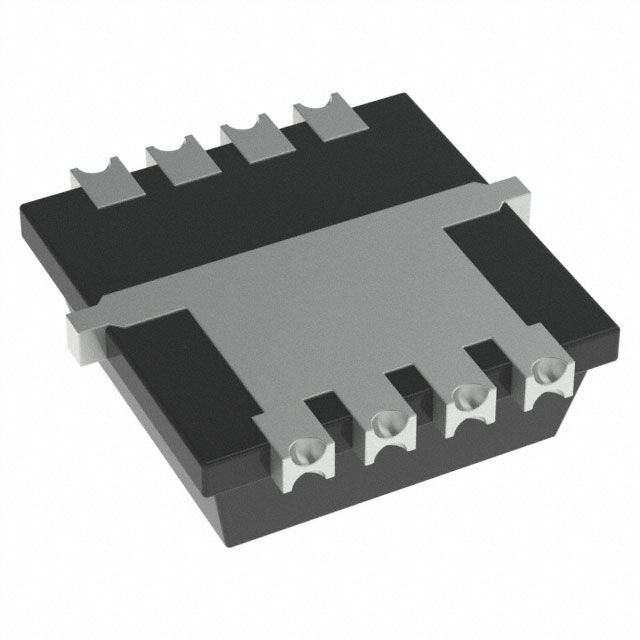

| Part Number | SQ7415AEN-T1_GE3 | SQ7415AENW-T1_GE3 | SQ7415CENW-T1_GE3 | SFP9Z34 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET P-CH 60V 16A PPAK1212-8 | MOSFET P-CH 60V 16A PPAK1212-8 | AUTOMOTIVE P-CHANNEL 60-V (D-S) | MOSFET P-CH 60V 18A TO220-3 |
| Series | TrenchFET® | - | TrenchFET® | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
