SQJ500AEP-T1_GE3

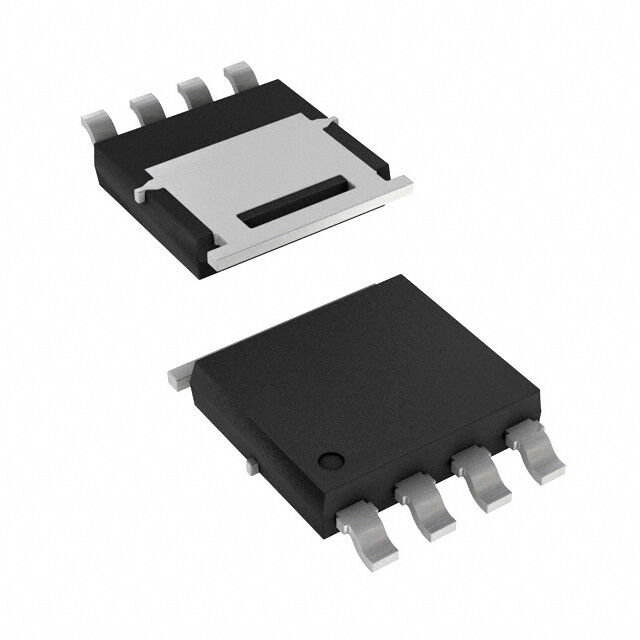

lmages are for reference only.SQJ500AEP-T1_GE3
MOSFET N/P-CH 40V 30A PPAK SO8
DatasheetPowerPAK® SO-8 Dual
30,867 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 40V 30A (Tc) 48W Surface Mount PowerPAK® SO-8 Dual
SQJ500AEP-T1_GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | - |
| Configuration | N and P-Channel |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
| Rds On (Max) @ Id, Vgs | 27mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 38.1nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1850pF @ 20V |
| Power - Max | 48W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | PowerPAK® SO-8 Dual |
| Supplier Device Package | PowerPAK® SO-8 Dual |
| Base Product Number | SQJ500 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

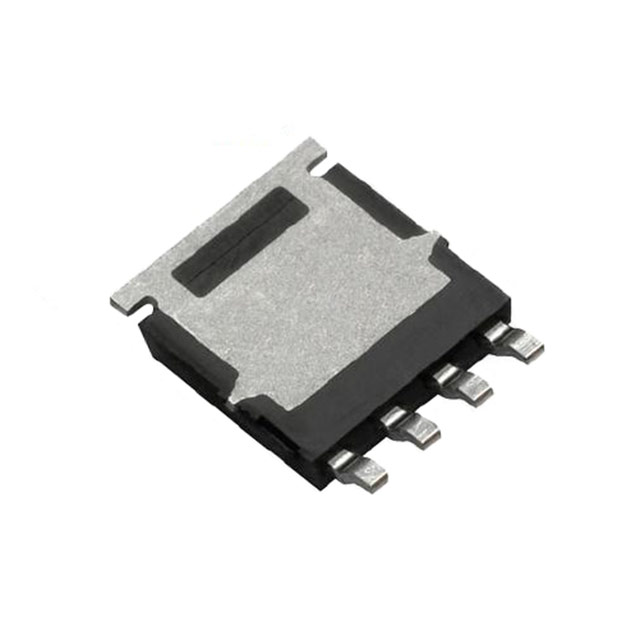

| Part Number | SQJ500AEP-T1_BE3 | SI3590DV-T1-E3 | SQ4917EY-T1_BE3 | SIL3724-TP |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N/P-CH 40V 30A PPAK SO8 | MOSFET N/P-CH 30V 2.5A 6TSOP | MOSFET 2P-CH 60V 8A 8SOIC | MOSFET N/P-CH 30V 5.8A SOT23-6L |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
