SQJ914EP-T1_GE3
lmages are for reference only.SQJ914EP-T1_GE3
MOSFET 2N-CH 30V 30A PPAK SO8
DatasheetPowerPAK® SO-8 Dual
70,050 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 30A (Tc) 27W (Tc) Surface Mount PowerPAK® SO-8 Dual
SQJ914EP-T1_GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 4.5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1110pF @ 15V |
| Power - Max | 27W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | PowerPAK® SO-8 Dual |
| Supplier Device Package | PowerPAK® SO-8 Dual |
| Base Product Number | SQJ914 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
|

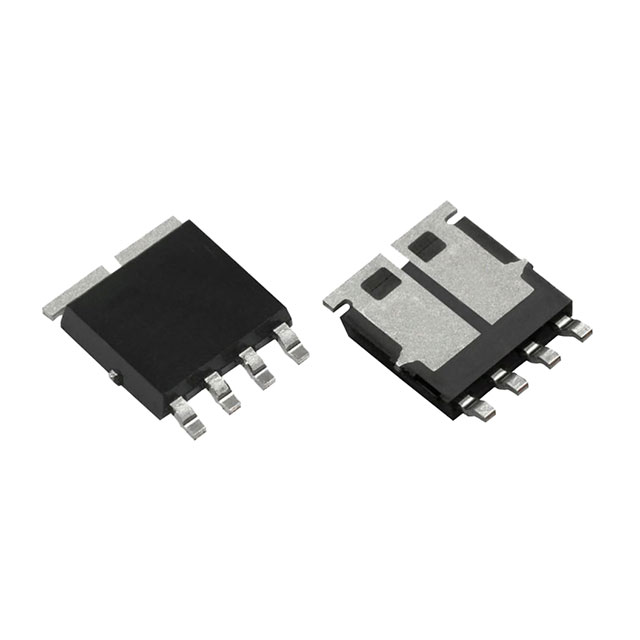

| Part Number | SQJ914EP-T1_BE3 | SQJ910AEP-T1_BE3 | SQJ910AEP-T1_GE3 | SQJ910AEP-T2_GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET 2N-CH 30V 30A PPAK SO8 | MOSFET 2N-CH 30V 30A PPAK SO8 | MOSFET 2N-CH 30V 30A PPAK SO8 | MOSFET 2N-CH 30V 30A PPAK SO8 |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
