Product Catalog

SQMW515RJ

SQMW515RJ

SQMW515RJ

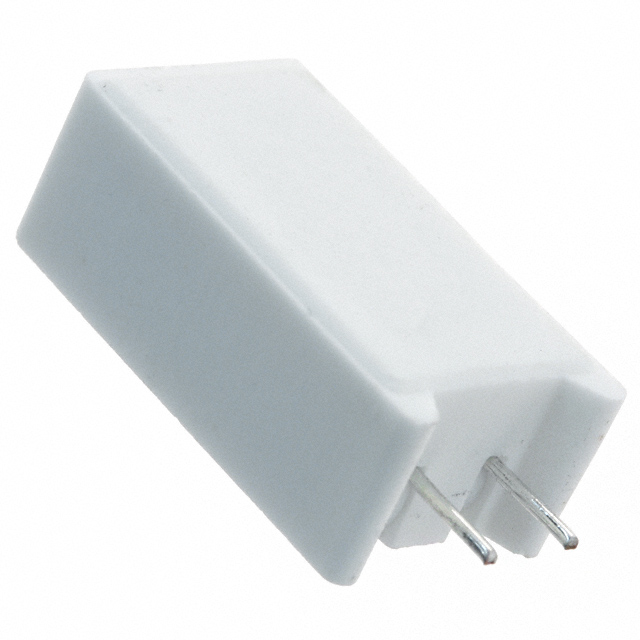

lmages are for reference only.
  • Part Number

    SQMW515RJ

  • Manufacturer

    TE Connectivity Passive Product
  • Description

    RES 15 OHM 5% 5W RADIAL

  • Datasheet

    DatasheetDatasheet
  • Package

    Radial

  • In Stock

    71,528 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

15 Ohms ±5% 5W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Wirewound

Quick Inquiry

SQMW515RJ

Get the Price Now!

Specifications

Category Resistors - Through Hole Resistors -
Manufacturer TE Connectivity Passive Product
Series SQ, CGS
Packaging Bulk
RoHS Status ROHS3 Compliant
Resistance 15 Ohms
Tolerance ±5%
Power (Watts) 5W
Composition Wirewound
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±300ppm/°C
Operating Temperature -55°C ~ 250°C
Package / Case Radial
Supplier Device Package Radial Lead
Size / Dimension 0.512" L x 0.354" W (13.00mm x 9.00mm)
Height - Seated (Max) 1.024" (26.00mm)
Number of Terminations 2
Failure Rate -
Base Product Number SQMW5

Parts with Similar Specifications

Product Attribute SQMW5100RJ SQMW510RJ SQMW5120RJ SQMW512RJ
Part Number SQMW5100RJ SQMW510RJ SQMW5120RJ SQMW512RJ
Manufacturer TE Connectivity Passive Product TE Connectivity Passive Product TE Connectivity Passive Product TE Connectivity Passive Product
RoHS Status ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant
Description RES 100 OHM 5% 5W RADIAL RES 10 OHM 5% 5W RADIAL RES 120 OHM 5% 5W RADIAL RES 12 OHM 5% 5W RADIAL
Series TE Connectivity Passive Product TE Connectivity Passive Product TE Connectivity Passive Product TE Connectivity Passive Product
Packaging Bulk Bulk Bulk Bulk
