SQS462EN-T1_BE3
lmages are for reference only.SQS462EN-T1_BE3
N-CHANNEL 60-V (D-S) 175C MOSFET
DatasheetPowerPAK® 1212-8
49,746 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 8A (Tc) 33W (Tc) Surface Mount PowerPAK® 1212-8
SQS462EN-T1_BE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 63mOhm @ 4.3A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 470 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 33W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® 1212-8 |
| Package / Case | PowerPAK® 1212-8 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

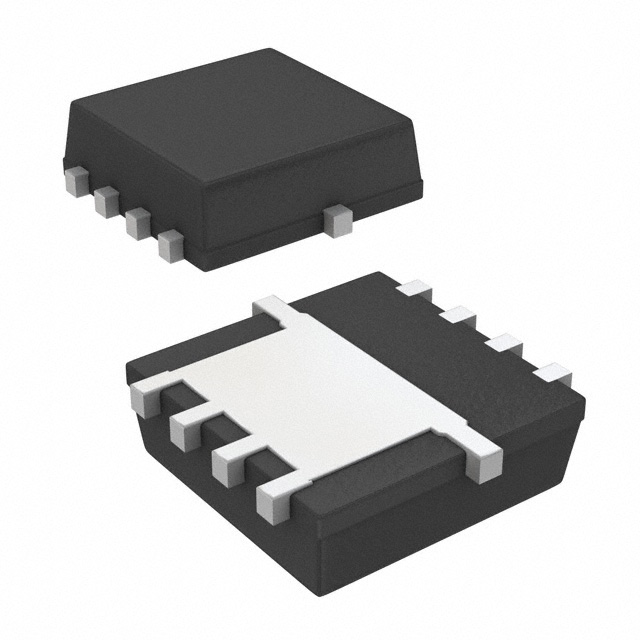

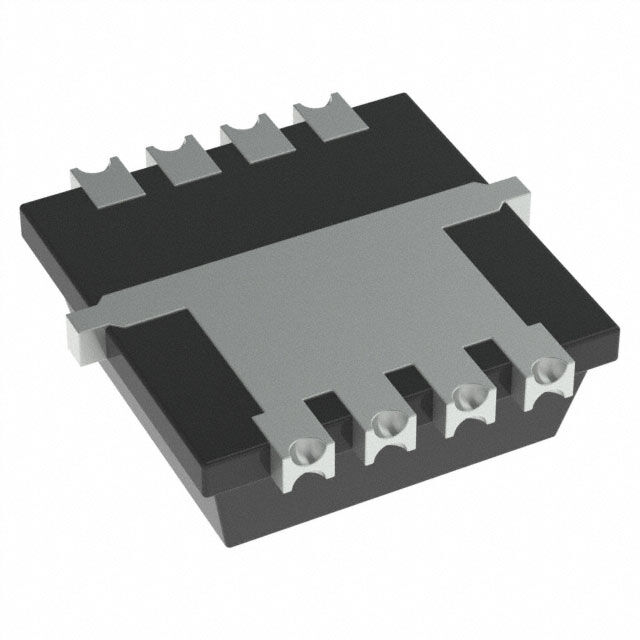

| Part Number | SQS462EN-T1_GE3 | SQS460CENW-T1_GE3 | SQS460EN-T1_BE3 | SQS460EN-T1_GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 60V 8A PPAK1212-8 | AUTOMOTIVE N-CHANNEL 60 V (D-S) | MOSFET N-CH 60V 8A PPAK1212-8 | MOSFET N-CH 60V 8A PPAK1212-8 |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
