Product CatalogPart Number
SQS484EN-T1_BE3
Manufacturer
Vishay SiliconixDescription
MOSFET N-CH 40V 16A 1212-8
Datasheet
DatasheetPackage
PowerPAK® 1212-8
In Stock
32,415 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SQS484EN-T1_BE3
SQS484EN-T1_BE3
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 40 V 16A (Tc) 62W (Tc) Surface Mount PowerPAK® 1212-8
Quick Inquiry
SQS484EN-T1_BE3
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 16.4A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1855 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 62W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® 1212-8 |
| Package / Case | PowerPAK® 1212-8 |
| Base Product Number | SQS484 |
| Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SQS484EN-T1_GE3 | SQS481ENW-T1_GE3 | SQS482EN-T1_BE3 | SQS482EN-T1_GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

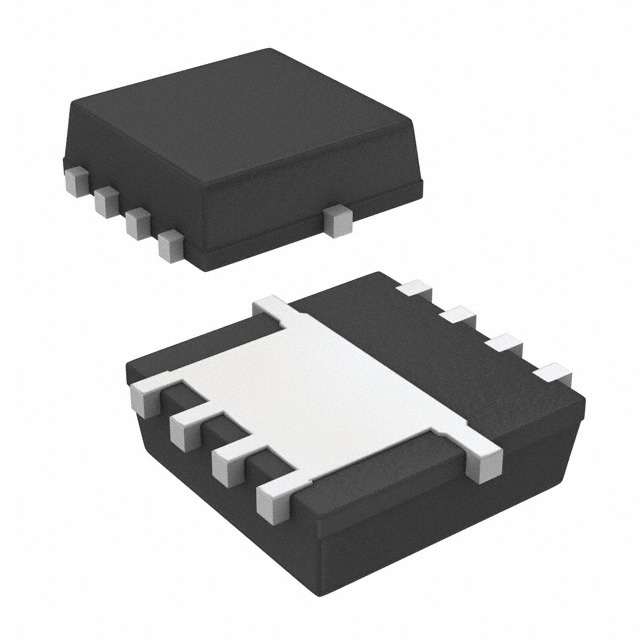

| Description | MOSFET N-CH 40V 16A PPAK1212-8 | MOSFET P-CH 150V 4.7A PPAK1212-8 | N-CHANNEL 30-V (D-S) 175C MOSFET | MOSFET N-CH 30V 16A PPAK1212-8 |
| Series | TrenchFET® | TrenchFET® | - | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
