SRF1690
lmages are for reference only.SRF1690
DIODE ARR SCHOT 90V 16A ITO220AB
DatasheetTO-220-3 Full Pack, Isolated Tab
32,869 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 90 V 16A Through Hole TO-220-3 Full Pack, Isolated Tab
SRF1690
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 90 V |
| Current - Average Rectified (Io) (per Diode) | 16A |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 90 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | ITO-220AB |
| Base Product Number | - |
| Reverse Recovery Time (trr) | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

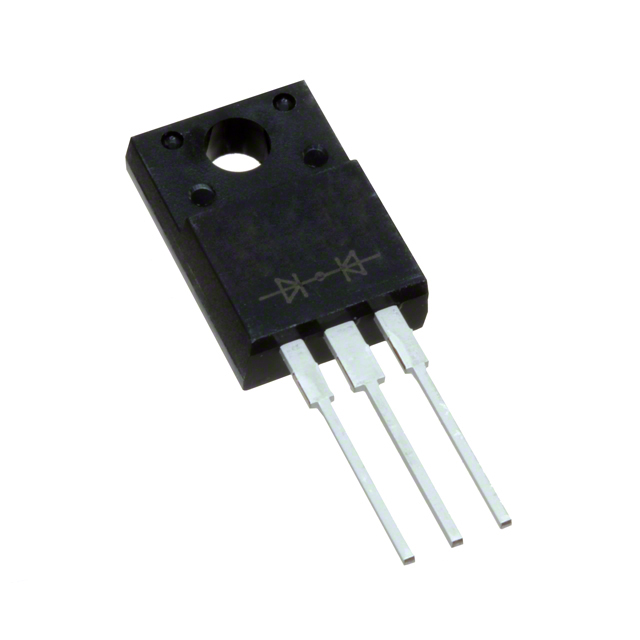

| Part Number | SRF1690HC0G | SRF10100 | SRF10100H | SRF10150 |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ARR SCHOT 90V 16A ITO220AB | DIODE ARR SCHOTTKY 100V ITO220AB | DIODE ARR SCHOTTKY 100V ITO220AB | DIODE ARR SCHOTTKY 150V ITO220AB |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
