Product CatalogPart Number
SRF7035A-701Y
Manufacturer
Bourns Inc.Description
CMC 7UH 4A 2LN 700OHM SMD
Datasheet
DatasheetPackage
Horizontal, 4 J-Lead
In Stock
13,448 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SRF7035A-701Y
SRF7035A-701Y
lmages are for reference only.Payment Methods
Delivery Services
7 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 700 Ohms @ 100 MHz 4A DCR 15mOhm
Quick Inquiry
SRF7035A-701Y
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Bourns Inc. |
| Series | SRF7035A |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 7 µH @ 100 kHz |
| Current Rating (Max) | 4A |
| DC Resistance (DCR) (Max) | 15mOhm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.276" L x 0.236" W (7.00mm x 6.00mm) |
| Height (Max) | 0.138" (3.50mm) |
| Package / Case | Horizontal, 4 J-Lead |
| Base Product Number | - |
| Impedance @ Frequency | 700 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

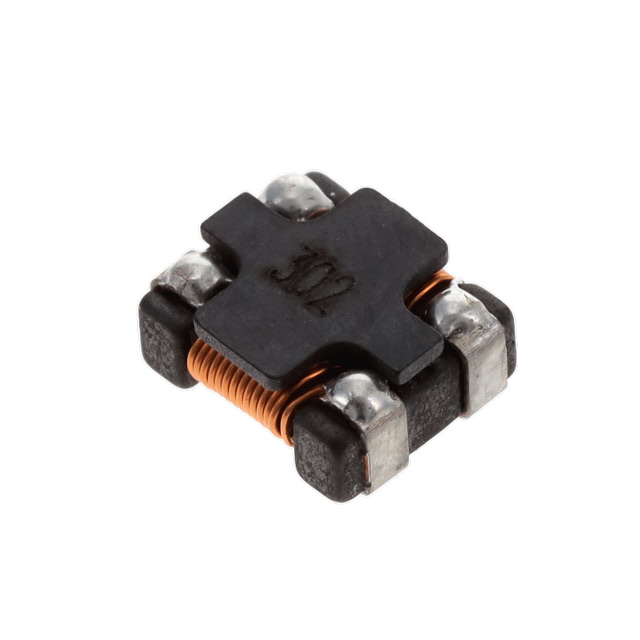

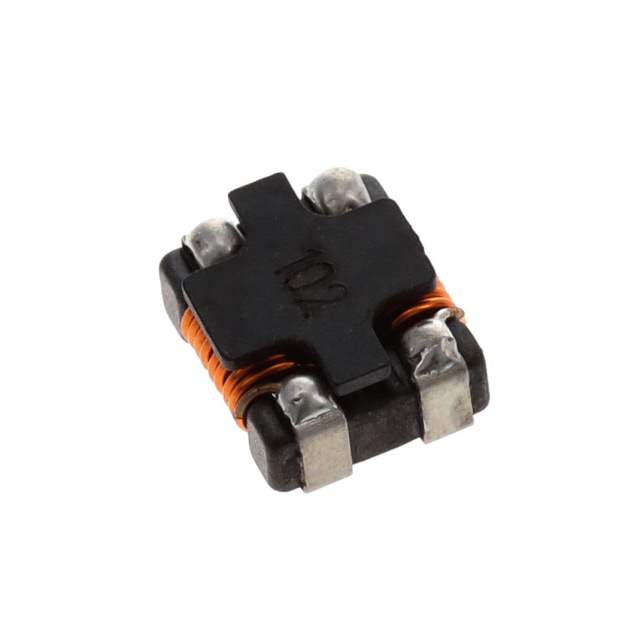

| Part Number | SRF7035A-102Y | SRF7035A-132Y | SRF7035A-301Y | SRF7035A-302Y |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 7.9UH 3A 2LN 1KOHM SMD | CMC 10.4UH 2.5A 2LN 1.3KOHM SMD | CMC 4UH 5A 2LN 300OHM SMD | CMC 22.6UH 1.2A 2LN 3KOHM SMD |
| Series | SRF7035A | SRF7035A | SRF7035A | SRF7035A |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
