Product CatalogPart Number
SRP1-CBDZH-025NW-N
Manufacturer
Littelfuse Inc.Description
SRP1-CB
Datasheet
DatasheetPackage
-
In Stock
32,016 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SRP1-CBDZH-025NW-N
SRP1-CBDZH-025NW-N

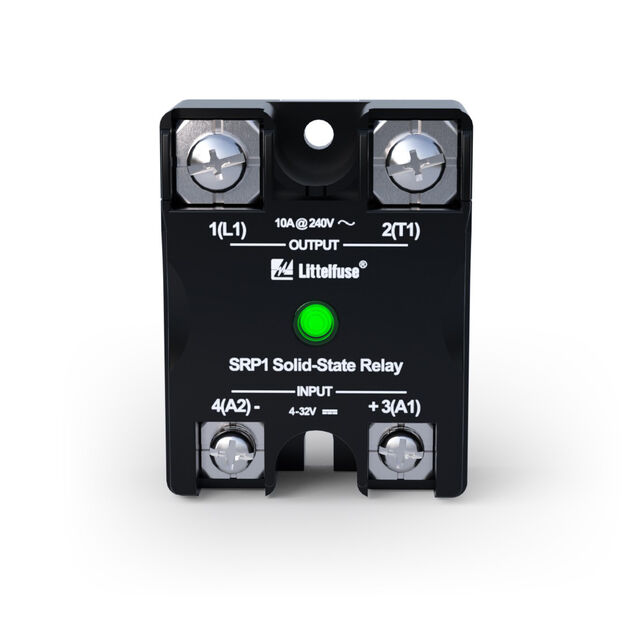

lmages are for reference only.Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A)
Quick Inquiry
SRP1-CBDZH-025NW-N
Specifications
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Littelfuse Inc. |
| Series | SRP1-CB |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, Zero Cross |
| Voltage - Input | 4 ~ 32VDC |
| Voltage - Load | 48 V ~ 600 V |
| Load Current | 25 A |
| Termination Style | Screw Terminal |
| Operating Temperature | -40°C ~ 70°C |
| Package / Case | - |
| Supplier Device Package | - |
| Approval Agency | CE, cURus, IEC |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| On-State Resistance (Max) | 6.3 mOhms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SRP1-CBDZH-050NF-N | SRP1-CBDZH-050NW-N | SRP1-CBDRH-025NW-N | SRP1-CBDRH-050NW-N |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ||||
| Description | SRP1-CBF | SRP1-CB | SRP1-CB | SRP1-CB |
| Series | SRP1-CB-F | SRP1-CB | SRP1-CB | SRP1-CB |
| Packaging | Bulk | Bulk | Bulk | Bulk |
