Product CatalogPart Number
SRV42-08WS
Manufacturer
JAMDescription
4.2 MM W TO B CONNECTOR 8P HOUSI
Datasheet
DatasheetPackage
-
In Stock
45,494 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SRV42-08WS
SRV42-08WS
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 8 position 0.165" (4.20mm)
Quick Inquiry
SRV42-08WS
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | JAM |
| Series | SRV |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.165" (4.20mm) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.232" (5.90mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.142" (3.60mm) |
| Overall Contact Length | - |
| Insulation Height | 0.445" (11.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | - |
| Operating Temperature | -25°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | - |
| Current Rating (Amps) | 10A |
| Voltage Rating | 300VAC/DC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

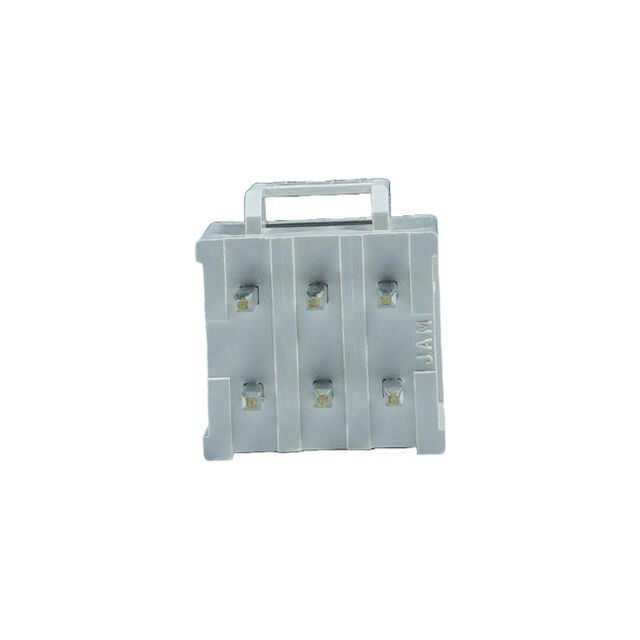

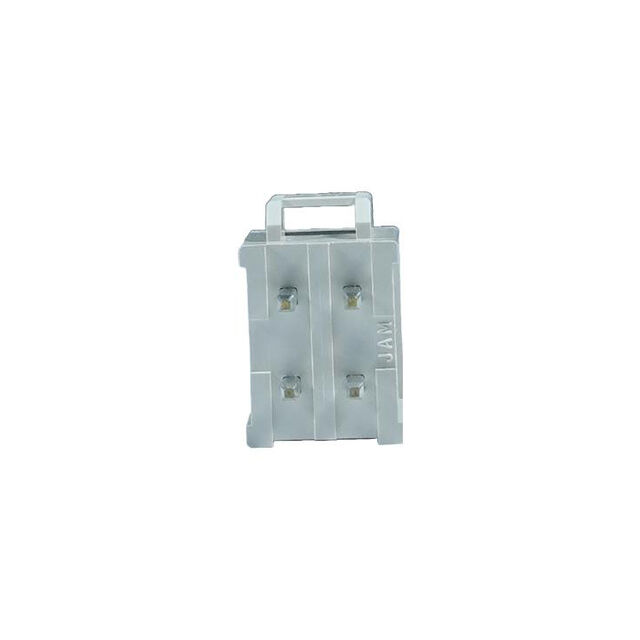

| Part Number | SRV42-04WS | SRV42-06WS | TSM-113-01-F-DV-LC-P-TR | HMTSW-112-10-G-D-520-RA |
| Manufacturer | JAM | JAM | Samtec Inc. | Samtec Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 4.2 MM W TO B CONNECTOR 4P HOUSI | 4.2 MM W TO B CONNECTOR 6P HOUSI | CONN HEADER SMD 26POS 2.54MM | .100" HIGH-TEMP VARIABLE POST HE |
| Series | SRV | SRV | TSM | Flex Stack, HMTSW |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
