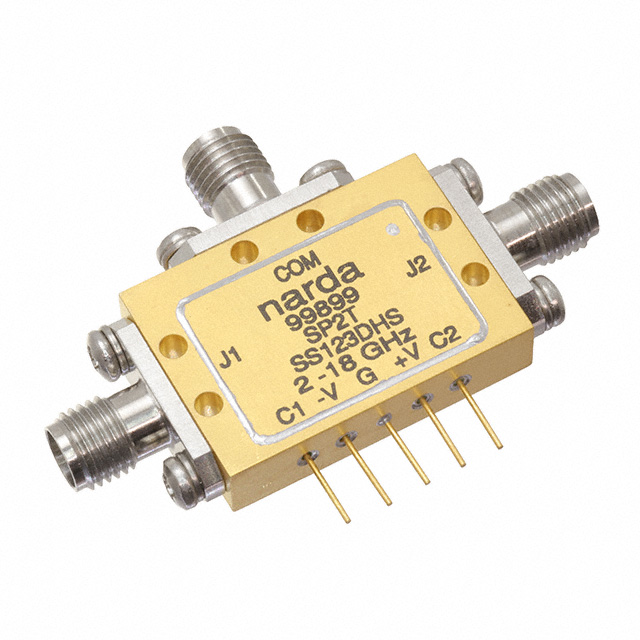

SS123BDHTS
lmages are for reference only.SS123BDHTS
IC RF SWITCH SPDT 18GHZ MODULE
DatasheetModule, SMA Connectors
54,586 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Switch IC General Purpose SPDT Module
SS123BDHTS
| Category | RF and Wireless - RF Switches - |
| Manufacturer | L3 Narda-MITEQ |
| Series | Super-Slim |
| Packaging | Box |
| RoHS Status | RoHS Compliant |
| RF Type | General Purpose |
| Topology | Absorptive |
| Circuit | SPDT |
| Frequency Range | 2GHz ~ 18GHz |
| Isolation | 55dB (min) |
| Insertion Loss | 2.9dB (max) |
| Test Frequency | 16GHz ~ 18GHz |
| P1dB | - |
| IIP3 | - |
| Features | - |
| Impedance | - |
| Voltage - Supply | - |
| Operating Temperature | -54°C ~ 95°C |
| Package / Case | Module, SMA Connectors |
| Supplier Device Package | Module |
| Base Product Number | SS123 |
| Mounting Type | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

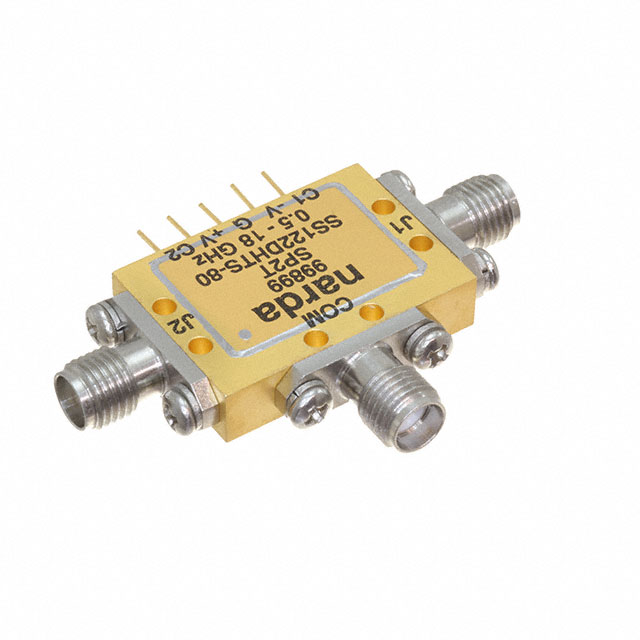

| Part Number | SS123BDHTS | SS122DHS | SS122DHS | SS122DHTS-80 |
| Manufacturer | L3 Narda-MITEQ | L3 Narda-MITEQ | L3 Narda-MITEQ | L3 Narda-MITEQ |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC RF SWITCH SPDT 18GHZ MODULE | IC RF SWITCH SPDT 18GHZ MODULE | IC RF SWITCH SPDT 18GHZ MODULE | IC RF SWITCH SPDT 18GHZ MODULE |
| Series | Super-Slim | Super-Slim | Super-Slim | Super-Slim |
| Packaging | Box | Box | Box | Box |
