Product CatalogPart Number
SS54
Manufacturer
Shenzhen Slkormicro Semicon Co., Ltd.Description
40V 550MV@5A 5A SMA
Datasheet
DatasheetPackage
DO-214AC, SMA
In Stock
94,306 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SS54
SS54
lmages are for reference only.Payment Methods
Delivery Services
Diode 40 V 5A Surface Mount DO-214AC (SMA)
Quick Inquiry
SS54
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Shenzhen Slkormicro Semicon Co., Ltd. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 40 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SS510 | SS510-HF | SS510ALH | SS510B |
| Manufacturer | Shenzhen Slkormicro Semicon Co., Ltd. | Comchip Technology | Taiwan Semiconductor Corporation | MDD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 100V 850MV@5A 5A SMA | DIODE SCHOTTKY 100V 5A DO214AC | 5A, 100V, SCHOTTKY RECTIFIER | DIODE SCHOTTKY 100V 5A SMB |
| Series | - | - | - | SS5 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
SS54
EVVO
SS54
MDD
SS54-HF
Comchip Technology

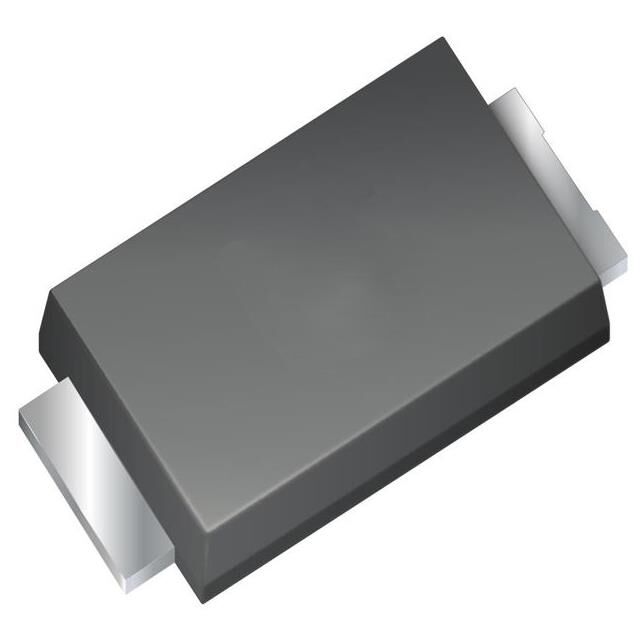

SS54ALH
Taiwan Semiconductor Corporation

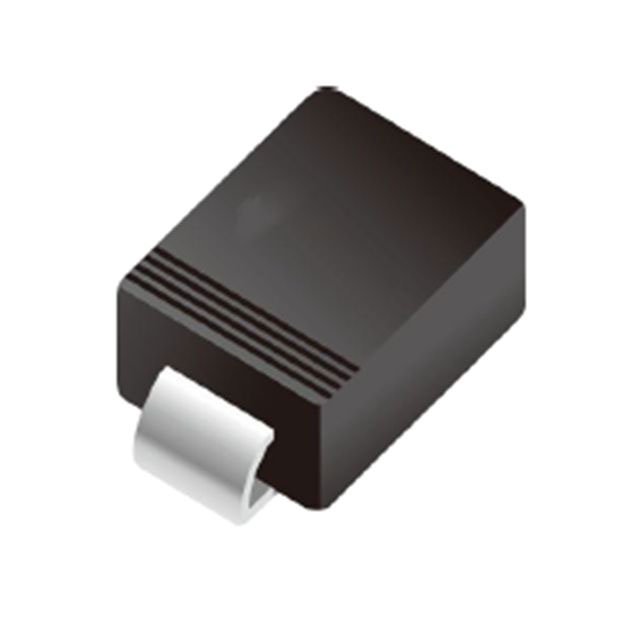

SS54B
EVVO
SS54B
MDD
SS54B-HF
Comchip Technology
SS54BF
EVVO
SS54BF-HF
Comchip Technology

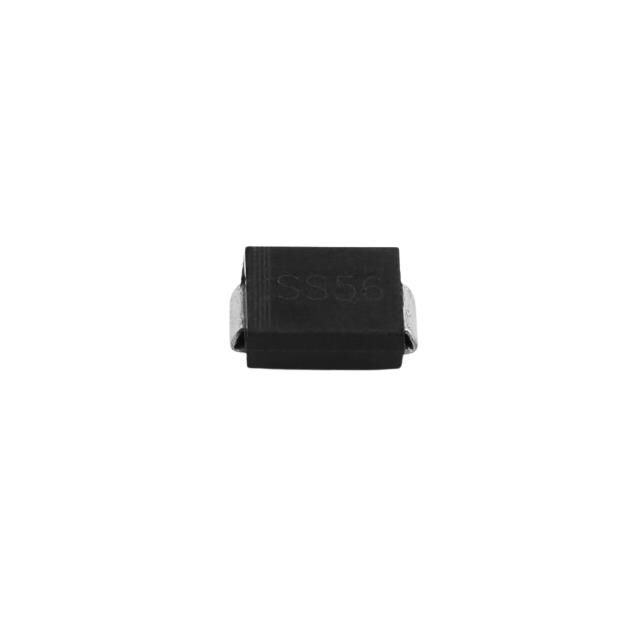

SS54C
