SSCDRNN100PGAA5

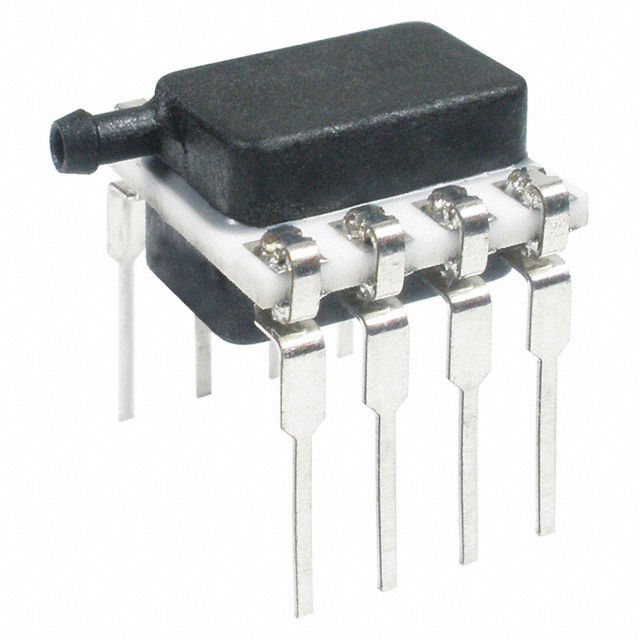

lmages are for reference only.SSCDRNN100PGAA5
SENSOR 100PSIG 0.08"
Datasheet8-DIP (0.524", 13.30mm), Side Port
28,341 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 100PSI (689.48kPa) Gauge Male - 0.08" (1.93mm) Tube 8-DIP (0.524", 13.30mm), Side Port
SSCDRNN100PGAA5
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® SSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Gauge |
| Operating Pressure | 100PSI (689.48kPa) |
| Output Type | Analog Voltage |
| Output | - |
| Accuracy | ±0.25% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.08" (1.93mm) Tube |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 250PSI (1723.69kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.524", 13.30mm), Side Port |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | SSCDRNN100PG2A5 | SSCDRNN100PG2A5 | SSCDRNN100PGSA3 | SSCDRNN001PD2A5 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SENSOR 100PSIG 0.08" 12BIT 8DIP | SENSOR 100PSIG 0.08" 12BIT 8DIP | SENSOR 100PSIG 0.08" 12BIT 8DIP | TRUSTABILITY PRESSURE SENSOR |
| Series | TruStability® SSC | TruStability® SSC | TruStability® SSC | * |
| Packaging | Bulk | Bulk | Bulk | Bulk |
