SSCSAAT001PGAA5

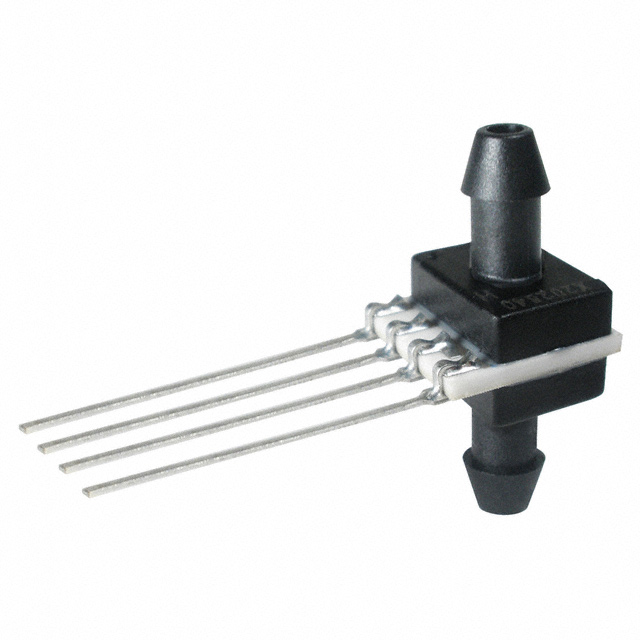

lmages are for reference only.SSCSAAT001PGAA5
SENSOR 1PSIG 0.19" 4.5V 4SIP
Datasheet4-SIP, Dual Ports, Opposite Sides
56,001 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.19" (4.93mm) Tube, Dual 0.5 V ~ 4.5 V 4-SIP, Dual Ports, Opposite Sides
SSCSAAT001PGAA5
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® SSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | SSCSAAT |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 1PSI (6.89kPa) |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.19" (4.93mm) Tube, Dual |
| Port Style | Barbed |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 10PSI (68.95kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, Dual Ports, Opposite Sides |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SSCSAAD005PDAA5 | SSCSAAN001NDAA5 | SSCSAAN001PG2A3 | SSCSAAN004ND2A5 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 5PSID 0.19" 4.5V 4SIP | SENSOR 0.04PSID 0.19" 4.5V 4SIP | SENSOR 1PSIG 0.19" 12BIT 4SIP | SENSOR 0.15PSID 0.19" 12BIT 4SIP |
| Series | TruStability® SSC | TruStability® SSC | TruStability® SSC | TruStability® SSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
