SSCSHHN060PGAA5
lmages are for reference only.SSCSHHN060PGAA5
SENSOR 60PSIG 0.16" 4.5V 4SIP
Datasheet4-SIP, Dual Ports, Same Side
69,798 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 60PSI (413.69kPa) Vented Gauge Male - 0.16" (3.94mm) Tube, Dual 0.5 V ~ 4.5 V 4-SIP, Dual Ports, Same Side
SSCSHHN060PGAA5
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® SSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | SSCSHHN |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 60PSI (413.69kPa) |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.16" (3.94mm) Tube, Dual |
| Port Style | Barbed |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 120PSI (827.37kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, Dual Ports, Same Side |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

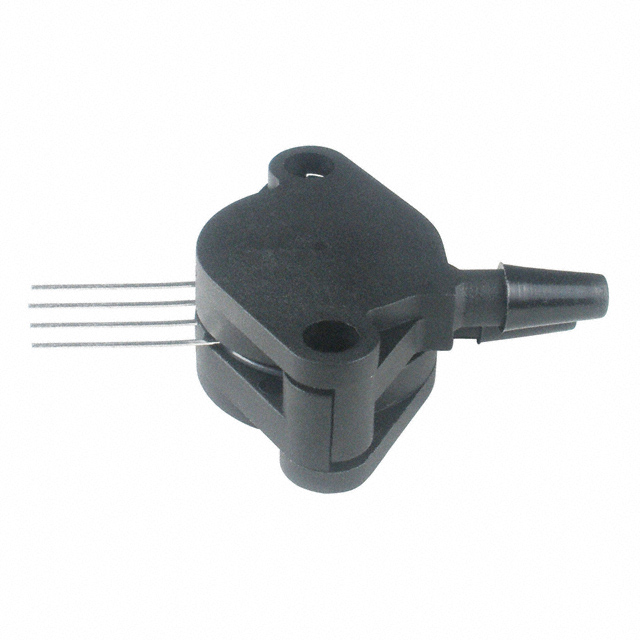

| Part Number | SSCSHHN001PDAA5 | SSCSHHN010NDAA5 | SSCSHHN015PGAA5 | SSCSHHN100MD2A5 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SENSOR 1PSID 0.16" 4.5V 4SIP | TRUSTABILITY PRESSURE SENSOR | SENSOR 5PSIG 0.16" 4.5V 4SIP | SENSOR 1.45PSID 0.16" 12BIT 4SIP |
| Series | TruStability® SSC | * | TruStability® SSC | TruStability® SSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
