SSCSNNN001PG2A3
lmages are for reference only.SSCSNNN001PG2A3
SENSOR 1PSIG 12BIT 4SIP
Datasheet4-SIP Module
13,571 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 1PSI (6.89kPa) Vented Gauge 12 b 4-SIP Module
SSCSNNN001PG2A3
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® SSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 1PSI (6.89kPa) |
| Output Type | I2C |
| Output | 12 b |
| Accuracy | ±0.25% |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | - |
| Port Style | No Port |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 10PSI (68.95kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

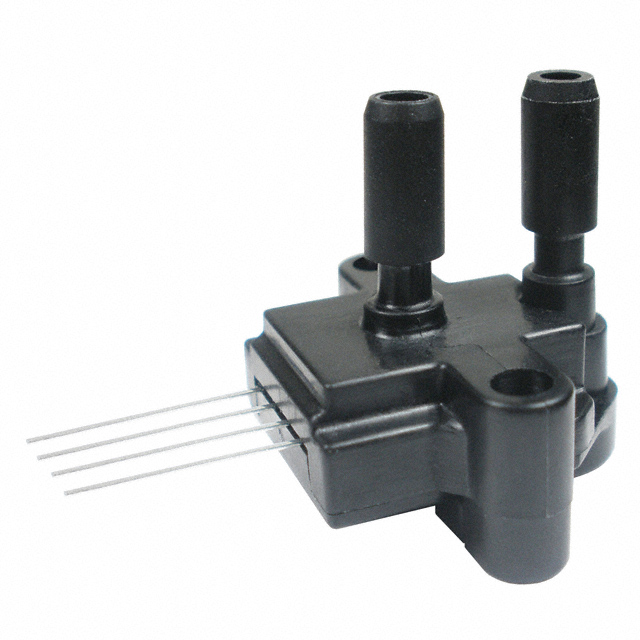

| Part Number | SSCSNBD005PDAA5 | SSCSNBN001BAAA5 | SSCSNBN001BDAA5 | SSCSNBN001NDAA3 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 5PSID 0.19" 4.5V 4SIP | SENSOR 14.5PSIA 0.19" 4.5V 4SIP | SENSOR 14.5PSID 0.19" 4.5V 4SIP | SENSOR 0.04PSID 0.19" 2.97V 4SIP |
| Series | TruStability® SSC | TruStability® SSC | TruStability® SSC | TruStability® SSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
