SSCSSNT015PGAA5

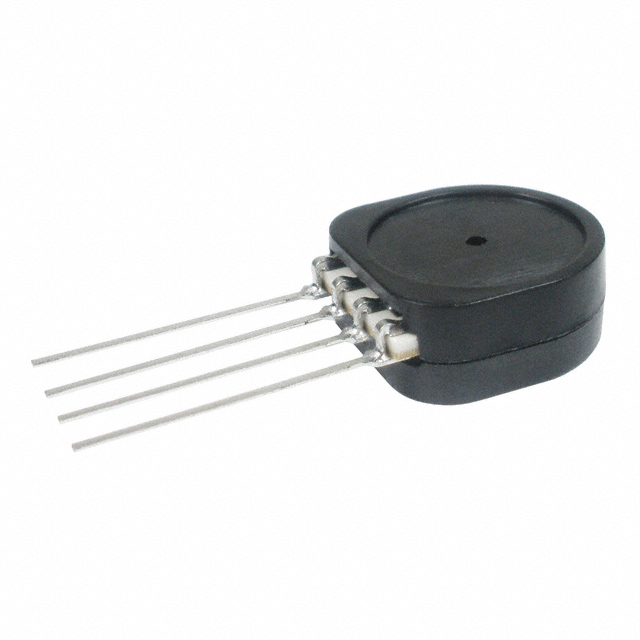

lmages are for reference only.SSCSSNT015PGAA5
SENSOR 15PSIG 4.5V 4SIP
Datasheet4-SIP Module
47,786 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Vented Gauge 0.5 V ~ 4.5 V 4-SIP Module
SSCSSNT015PGAA5
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® SSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | SSCSSNT |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Port Style | No Port |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 30PSI (206.84kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | SSCSSNT015PGAA5 | SSCSSNT015PAAA5 | SSCSSNT015PAAA5 | SSCSSNT015PDAA5 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 15PSIG 4.5V 4SIP | SENSOR 15PSIA 4.5V 4SIP | SENSOR 15PSIA 4.5V 4SIP | SENSOR 15PSID 4.5V 4SIP |
| Series | TruStability® SSC | TruStability® SSC | TruStability® SSC | TruStability® SSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
