SSL-LX3059IGW-TR
lmages are for reference only.SSL-LX3059IGW-TR
LED T-3MM 635NM RD/GN WHT CC T/R
DatasheetRadial - 3 Leads
40,026 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green, Red LED Indication - Discrete 2.2V Green, 2V Red Radial - 3 Leads
SSL-LX3059IGW-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Common Cathode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 40mcd Green, 40mcd Red |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 60° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | - |
| Wavelength - Peak | 565nm Green, 627nm Red |
| Features | - |
| Package / Case | Radial - 3 Leads |
| Supplier Device Package | T-3mm TRI-LEADED |
| Size / Dimension | - |
| Height (Max) | 5.00mm |
| Base Product Number | SSL-LX3059 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

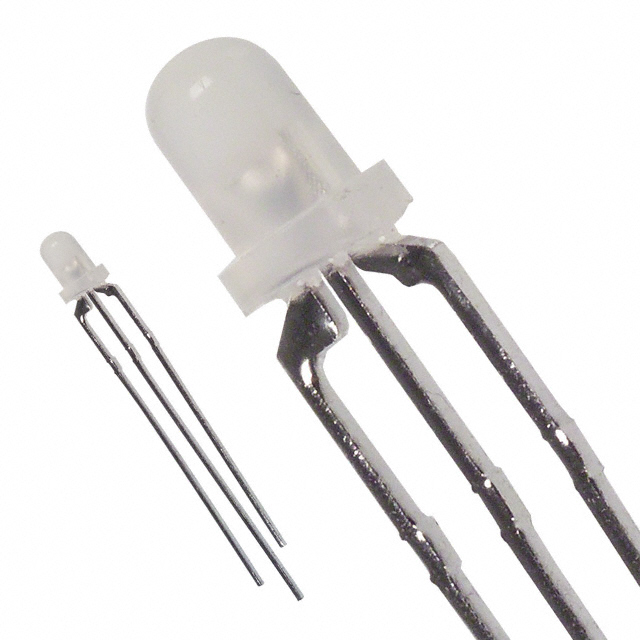

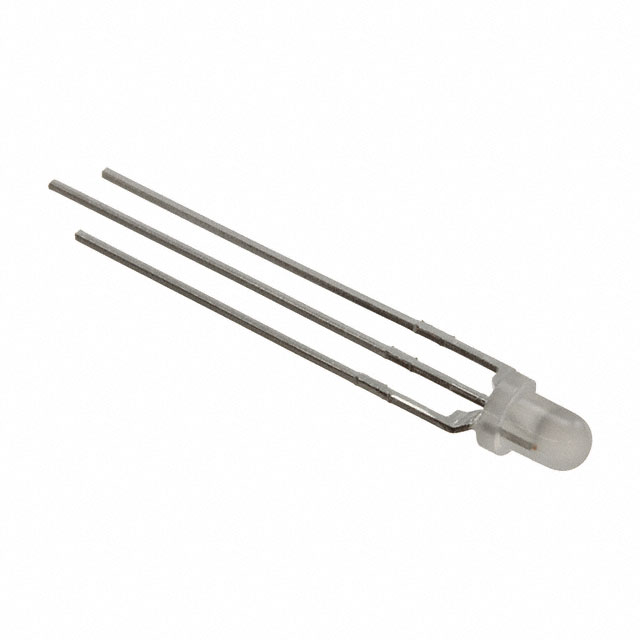

| Part Number | SSL-LX3059IGW | SSL-LX3059IGW-CA | SSL-LX3059GYW | SSL-LX3059GYW-TR |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED DIFF T-3MM TRI T/H | LED GREEN/RED DIFF T-3MM TRI T/H | LED GRN/YLW DIFF T-3MM TRI T/H | LED GRN/YLW DIFFUSED T-1 T/H |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Bulk | Bag | Bulk | Tape & Reel (TR) |
