SSM3J112TU,LF
lmages are for reference only.SSM3J112TU,LF
MOSFET P-CH 30V 1.1A UFM
Datasheet3-SMD, Flat Leads
65,502 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 30 V 1.1A (Ta) 800mW (Ta) Surface Mount UFM
SSM3J112TU,LF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 1.1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 390mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 1.8V @ 100µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 86 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 800mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | UFM |
| Package / Case | 3-SMD, Flat Leads |
| Base Product Number | SSM3J112 |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|

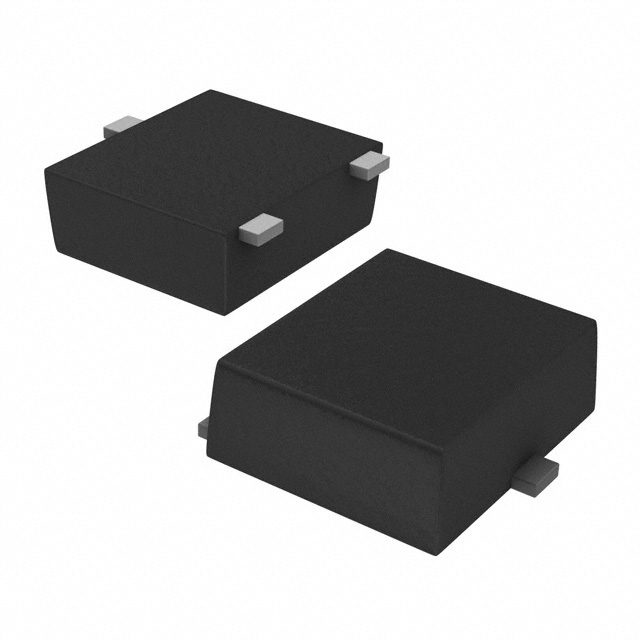

.jpg "SSM3J118TU(TE85L)") |
 |
| Part Number | SSM3J114TU(TE85L) | SSM3J117TU,LF | SSM3J118TU(TE85L) | SSM3J118TU,LF |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | |
| Description | MOSFET P-CH 20V 1.8A UFM | MOSFET P-CHANNEL 30V 2A UFM | MOSFET P-CH 30V 1.4A UFM | PB-F SMALL LOW ON RESISTANCE PCH |
| Series | - | U-MOSII | U-MOSII | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
