SSM6N40TU,LF
lmages are for reference only.SSM6N40TU,LF
MOSFET 2N-CH 30V 1.6A UF6
Datasheet6-SMD, Flat Leads
91,000 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 1.6A (Ta) 500mW (Ta) Surface Mount UF6
SSM6N40TU,LF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate, 4V Drive |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 1.6A (Ta) |
| Rds On (Max) @ Id, Vgs | 122mOhm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 5.1nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 180pF @ 15V |
| Power - Max | 500mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Flat Leads |
| Supplier Device Package | UF6 |
| Base Product Number | SSM6N40 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

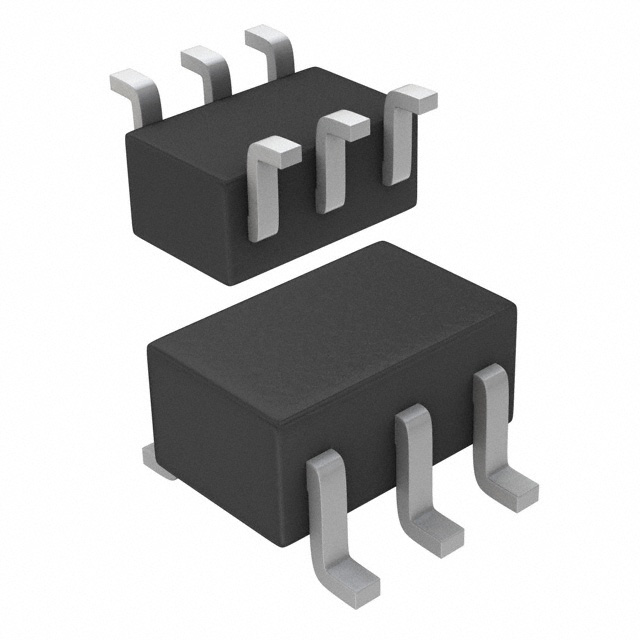

| Part Number | SSM6N42FE(TE85L,F) | SSM6N43FU,LF | SSM6N44FE,LM | SSM6N44FU,LF |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET 2N-CH 20V 0.8A ES6 | MOSFET 2N-CH 20V 0.5A US6 | MOSFET 2N-CH 30V 0.1A ES6 | MOSFET 2N-CH 30V 0.1A US6 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
