SST25PF020B-80-4C-QAE-T

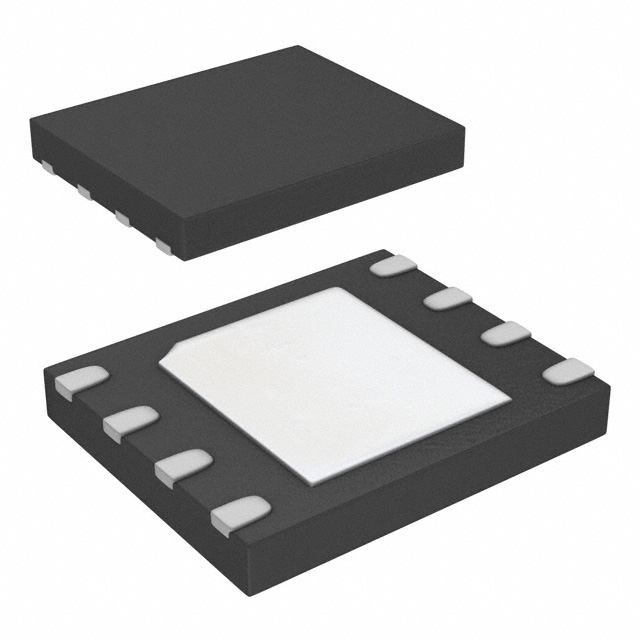

lmages are for reference only.SST25PF020B-80-4C-QAE-T
IC FLASH 2MBIT SPI 80MHZ 8WSON
Datasheet8-WDFN Exposed Pad
27,834 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
FLASH Memory IC 2Mbit SPI 80 MHz 8-WSON (6x5)
SST25PF020B-80-4C-QAE-T
| Category | Integrated Circuits (ICs) - Memory - Memory |
| Manufacturer | Microchip Technology |
| Series | SST25 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH |
| Memory Size | 2Mbit |
| Memory Organization | 256K x 8 |
| Memory Interface | SPI |
| Clock Frequency | 80 MHz |
| Write Cycle Time - Word, Page | 10µs |
| Voltage - Supply | 2.3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (6x5) |
| Base Product Number | SST25PF020 |
| Access Time | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SST25PF020B-80-4C-QAE | SST25PF020B-80-4C-Q3AE | SST25PF020B-80-4C-Q3AE-T | SST25PF020B-80-4C-SAE |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC FLASH 2MBIT SPI 80MHZ 8WSON | IC FLASH 2MBIT SPI 80MHZ 8USON | IC FLASH 2MBIT SPI 80MHZ 8USON | IC FLASH 2MBIT SPI 80MHZ 8SOIC |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tube | Bag | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
