Product CatalogPart Number
SSTW005A0F41-SRZ
Manufacturer
OmniOn Power™Description
DC DC CONVERTER 3.3V 17W
Datasheet
DatasheetPackage
6-SMD Module
In Stock
20,966 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SSTW005A0F41-SRZ
SSTW005A0F41-SRZ

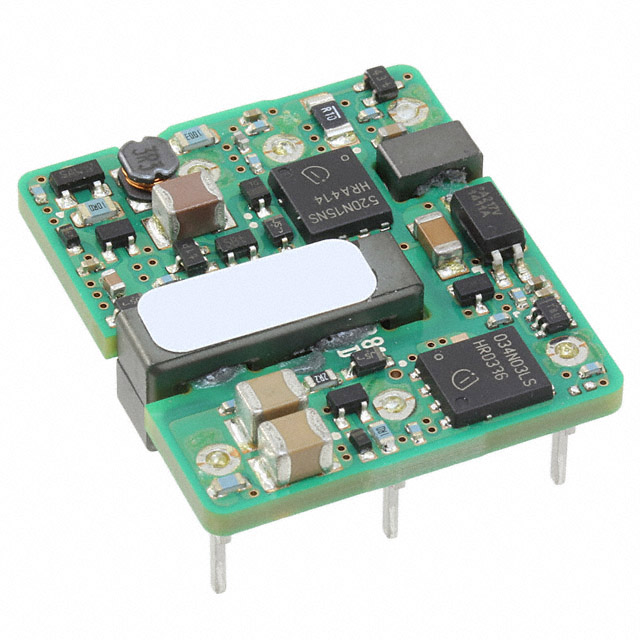

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 5A 36V - 75V Input
Quick Inquiry
SSTW005A0F41-SRZ
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | Barracuda™ SSTW005A0F (15W) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 17 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 87.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD Module |
| Size / Dimension | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | SSTW005 |
| Voltage - Isolation | 2.25 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SSTW005A0F41 | SSTW005A0F41Z | SSTW001A3B41-SRZ | SSTW001A3B41Z |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3.3V 17W | DC DC CONVERTER 3.3V 17W | DC DC CONVERTER 12V 15W | DC DC CONVERTER 12V 15W |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| Packaging | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tray |
