Product CatalogPart Number
ST-03CH
Manufacturer
Soberton Inc.Description
BUZZER MAGNETIC 5V 0.34X0.34 SMD
Datasheet
DatasheetPackage
-
In Stock
51,331 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ST-03CH
ST-03CH
lmages are for reference only.Payment Methods
Delivery Services
Buzzers Transducer, Externally Driven Magnetic 5 V 100mA 2.73kHz 88dB @ 5V, 10cm Surface Mount Solder Pads
Quick Inquiry
ST-03CH
Specifications
| Category | Audio Products - Alarms-Buzzers-and Sirens - |
| Manufacturer | Soberton Inc. |
| Series | ST |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 4 ~ 6V |
| Frequency | 2.73kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 88dB @ 5V, 10cm |
| Current - Supply | 100mA |
| Port Location | Side |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |  |  |  |

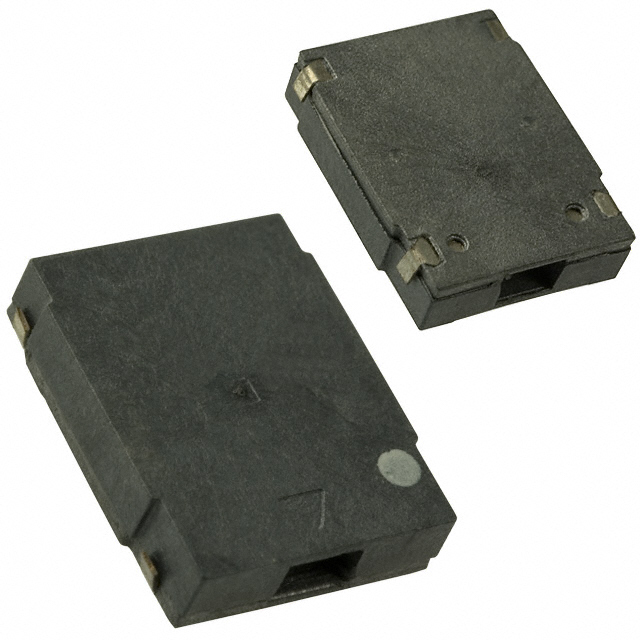

| Part Number | ST-01AH | ST-01BH | ST-01CH | ST-025BH |
| Manufacturer | Soberton Inc. | Soberton Inc. | Soberton Inc. | Soberton Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BUZZER MAGNETIC 11X14MM SMD | BUZZER MAGNETIC 11X14MM SMD | BUZZER MAGNETIC 11X14MM SMD | BUZZER MAGN 3V 7.5X7.5 SMD |
| Series | ST | ST | ST | ST |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> |
