Product CatalogPart Number
ST15100
Manufacturer
SMC Diode SolutionsDescription
DIODE SCHOTTKY 100V TO220AC
Datasheet
DatasheetPackage
TO-220-2
In Stock
94,184 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ST15100
ST15100
lmages are for reference only.Payment Methods
Delivery Services
Diode 100 V Through Hole TO-220AC
Quick Inquiry
ST15100
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | SMC Diode Solutions |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | - |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 100 V |
| Capacitance @ Vr, F | 686pF @ 5V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

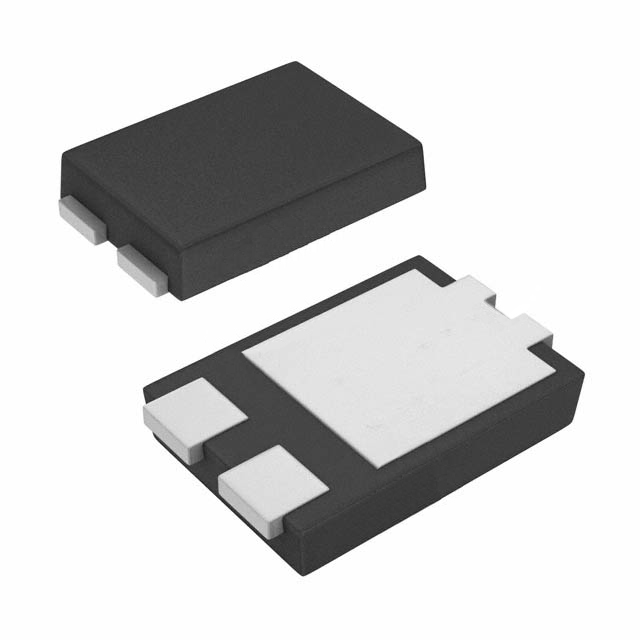

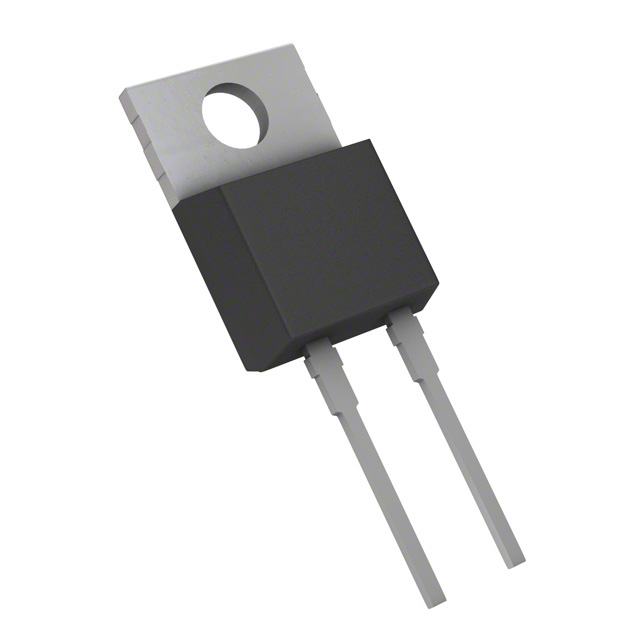

| Part Number | ST15100S | ST15150 | ST15150S | ST15200 |
| Manufacturer | SMC Diode Solutions | SMC Diode Solutions | SMC Diode Solutions | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ULTRA LOW VF SCHOTTKY RECTIFIERS | DIODE SCHOTTKY 150V TO220AC | ULTRA LOW VF SCHOTTKY RECTIFIERS | DIODE SCHOTTKY 200V TO220AC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
