ST3P3LB2
lmages are for reference only.ST3P3LB2
RELAY GEN PURPOSE SPDT 6A 12V
Datasheet-
53,479 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 12VDC Coil DIN Rail
ST3P3LB2
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | SNR, SCHRACK |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | DIN Rail |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 2400VA |
| Coil Current | 14.2 mA |
| Coil Type | Non Latching |
| Features | Socket Included |
| Termination Style | Screw Terminal |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 12 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 848 Ohms |
| Base Product Number | ST3P3L |
| Product Attribute |  |
 |
 |
 |

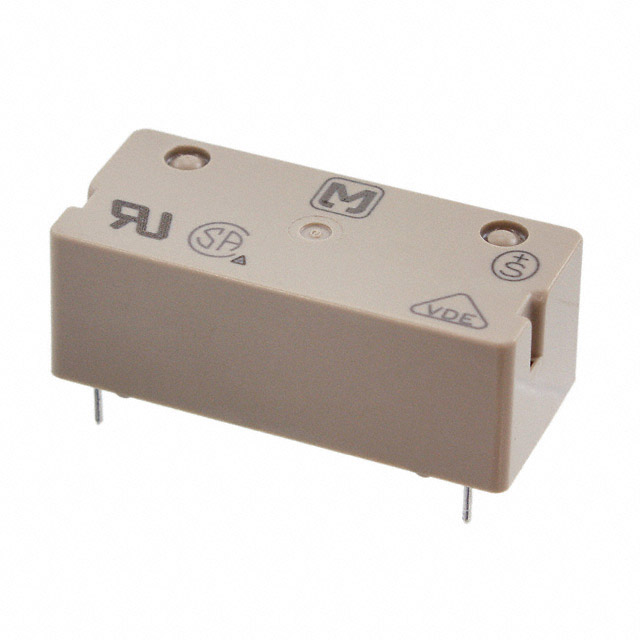

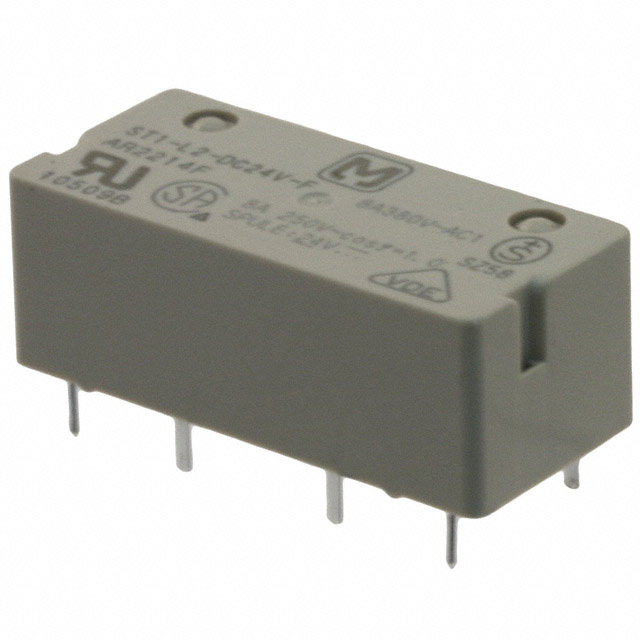

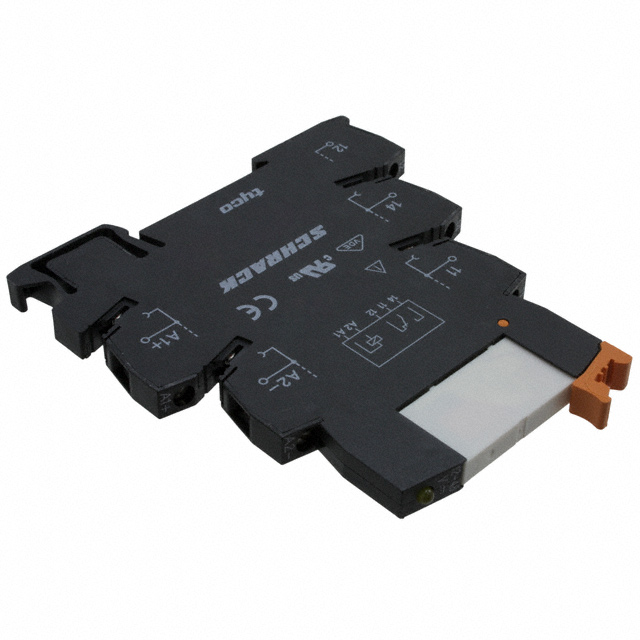

| Part Number | ST3P3LC4 | ST2-DC9V-F | ST1-L2-DC24V-F | ST2-L2-DC5V |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | |
| Description | RELAY GEN PURPOSE SPDT 6A 24V | RELAY GEN PURPOSE DPST 8A 9V | RELAY GEN PURPOSE DPST 8A 24V | RELAY GEN PURPOSE DPST 8A 5V |
| Series | TE Connectivity Potter & Brumfield Relays | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Packaging | Bulk | Box | Box | Box |
