STGAP2SCM

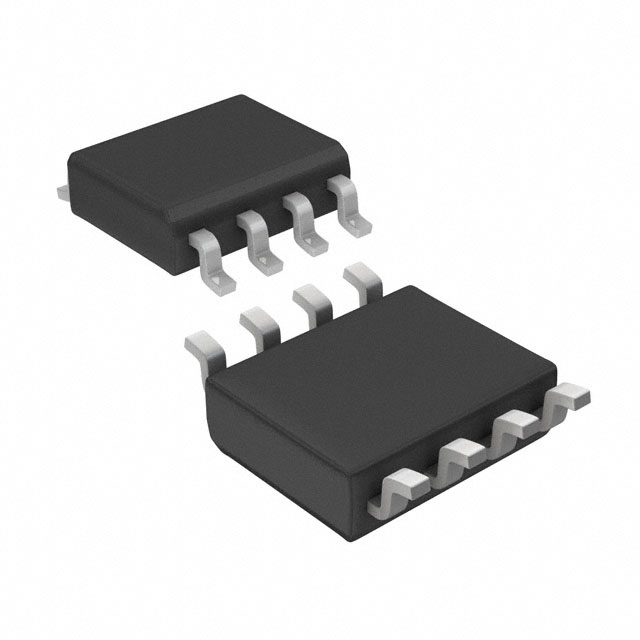

lmages are for reference only.STGAP2SCM
DGTL ISO 1.7KV 1CH GATE DVR 8SO
Datasheet8-SOIC (0.154", 3.90mm Width)
16,580 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Gate Driver Magnetic Coupling 1700VDC 1 Channel 8-SO
STGAP2SCM
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Magnetic Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 1700VDC |
| Common Mode Transient Immunity (Min) | 100V/ns |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 20ns |
| Rise / Fall Time (Typ) | 30ns, 30ns |
| Current - Output High, Low | 4A, 4A |
| Current - Peak Output | - |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Output Supply | 3V ~ 5.5V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Approval Agency | - |
| Base Product Number | STGAP2 |
| Current - DC Forward (If) (Max) | - |
| Product Attribute |  |
 |
 |
|
| Part Number | STGAP2SCMTR | STGAP2DM | STGAP2DMTR | STGAP2GSC |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DGTL ISO 1.7KV 1CH GATE DVR 8SO | DGTL ISO | DGTL ISO 1.7KV 2CH GATE DVR 16SO | DIGITAL ISO 5KV 1CH GATE DVR 8SO |
| Series | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
