IGBT Trench Field Stop 600 V 20 A 115 W Surface Mount TO-263 (D2PAK)
STGB10H60DF
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 20 A |
| Current - Collector Pulsed (Icm) | 40 A |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 10A |
| Power - Max | 115 W |
| Switching Energy | 83µJ (on), 140µJ (off) |
| Input Type | Standard |
| Gate Charge | 57 nC |
| Td (on/off) @ 25°C | 19.5ns/103ns |
| Test Condition | 400V, 10A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Reverse Recovery Time (trr) | 107 ns |
| Base Product Number | STGB10 |
| Product Attribute |  |
 |
 |
|

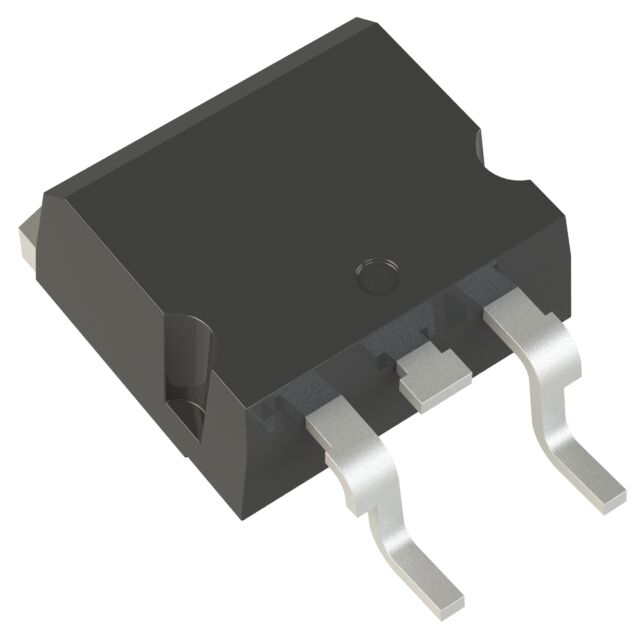

| Part Number | STGB10M65DF2 | STGB10NB37LZ | STGB10NB37LZT4 | STGB10NB40LZT4 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 650V 10A D2PAK | IGBT 440V 20A 125W D2PAK | IGBT 440V 20A 125W D2PAK | IGBT 440V 20A D2PAK |
| Series | - | PowerMESH™ | PowerMESH™ | PowerMESH™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
