STGD10NC60ST4

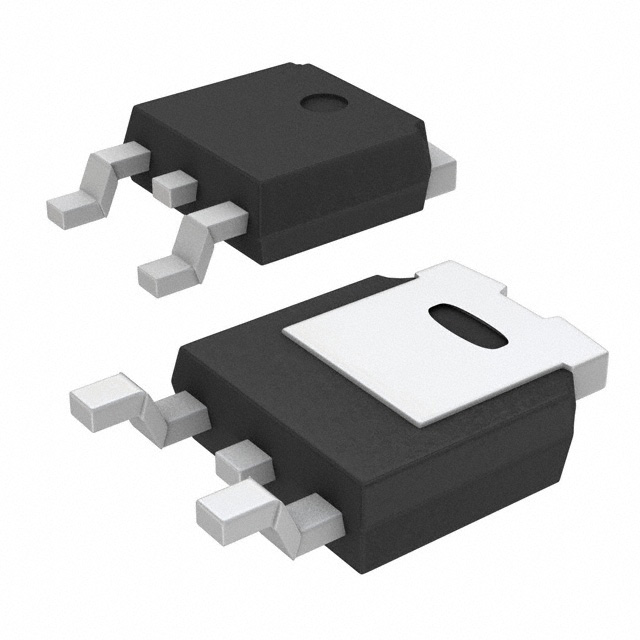

lmages are for reference only.STGD10NC60ST4
IGBT 600V 18A 60W DPAK
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
35,679 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT 600 V 18 A 60 W Surface Mount DPAK
STGD10NC60ST4
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | STMicroelectronics |
| Series | PowerMESH™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 18 A |
| Current - Collector Pulsed (Icm) | 25 A |
| Vce(on) (Max) @ Vge, Ic | 1.65V @ 15V, 5A |
| Power - Max | 60 W |
| Switching Energy | 60µJ (on), 340µJ (off) |
| Input Type | Standard |
| Gate Charge | 18 nC |
| Td (on/off) @ 25°C | 19ns/160ns |
| Test Condition | 390V, 5A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Reverse Recovery Time (trr) | - |
| Base Product Number | STGD10 |
| Product Attribute |  |
 |
|
 |
| Part Number | STGD10NC60HDT4 | STGD10NC60HT4 | STGD10NC60KDT4 | STGD10NC60KT4 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 600V 20A 62W D2PAK | IGBT 600V 20A 60W DPAK | IGBT 600V 20A DPAK | IGBT 600V 20A 60W DPAK |
| Series | PowerMESH™ | PowerMESH™ | PowerMESH™ | PowerMESH™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
