STGD6NC60HDT4

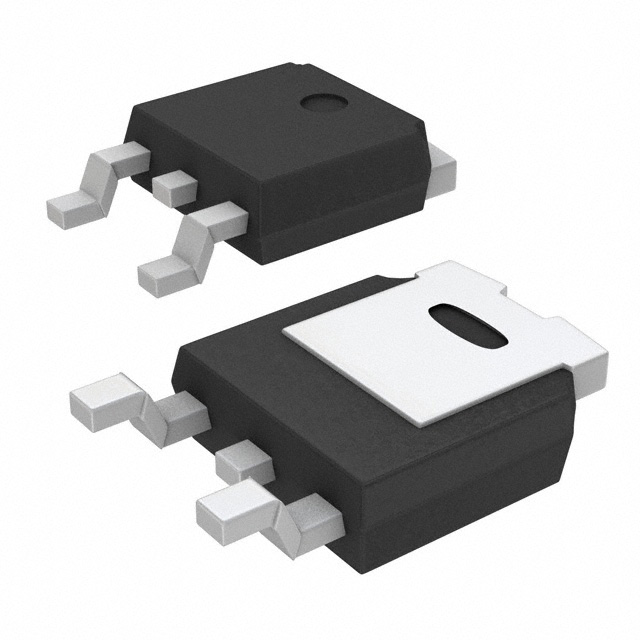

lmages are for reference only.STGD6NC60HDT4
IGBT 600V 15A DPAK
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
22,277 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT 600 V 15 A 56 W Surface Mount DPAK
STGD6NC60HDT4
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | STMicroelectronics |
| Series | PowerMESH™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 15 A |
| Current - Collector Pulsed (Icm) | 21 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 3A |
| Power - Max | 56 W |
| Switching Energy | 20µJ (on), 68µJ (off) |
| Input Type | Standard |
| Gate Charge | 13.6 nC |
| Td (on/off) @ 25°C | 12ns/76ns |
| Test Condition | 390V, 3A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Reverse Recovery Time (trr) | 21 ns |
| Base Product Number | STGD6 |
| Product Attribute |  |
|
|
|
| Part Number | STGD6NC60H-1 | STGD6NC60HT4 | STG200G65FD8AG | STG5592QTR |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

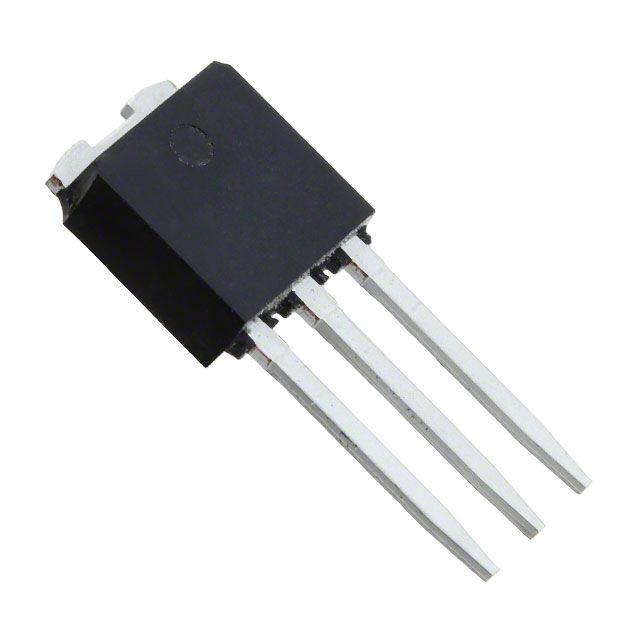

| Description | IGBT N-CH 600V 7A IPAK | IGBT 600V 15A 56W DPAK | IGBT TRENCH FS 650V 200A DIE | Linear IC's |
| Series | PowerMESH™ | PowerMESH™ | M | - |
| Packaging | Tube | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
