STGD7NB60KT4
lmages are for reference only.STGD7NB60KT4
IGBT 600V 14A DPAK
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
58,535 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT 600 V 14 A 70 W Surface Mount DPAK
STGD7NB60KT4
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | STMicroelectronics |
| Series | PowerMESH™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 14 A |
| Current - Collector Pulsed (Icm) | 56 A |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 7A |
| Power - Max | 70 W |
| Switching Energy | 95µJ (on), 140µJ (off) |
| Input Type | Standard |
| Gate Charge | 32.7 nC |
| Td (on/off) @ 25°C | 15ns/50ns |
| Test Condition | 480V, 7A, 10Ohm, 15V |
| Operating Temperature | 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Reverse Recovery Time (trr) | - |
| Base Product Number | STGD7 |
| Product Attribute |  |
 |
 |
 |

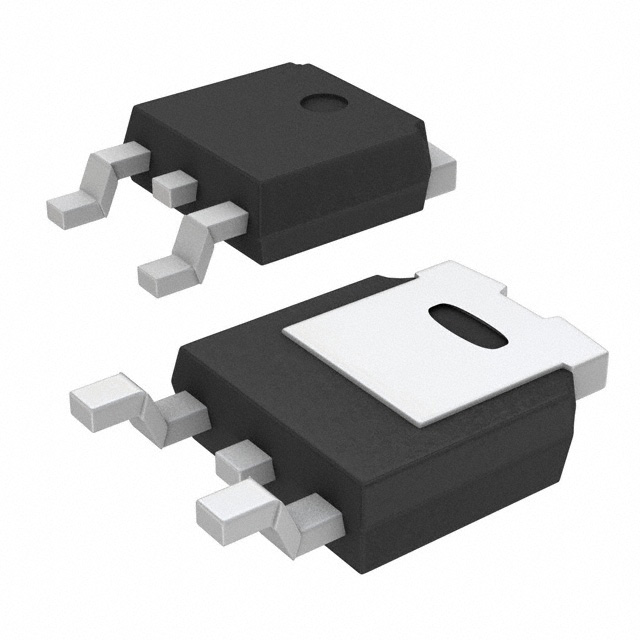

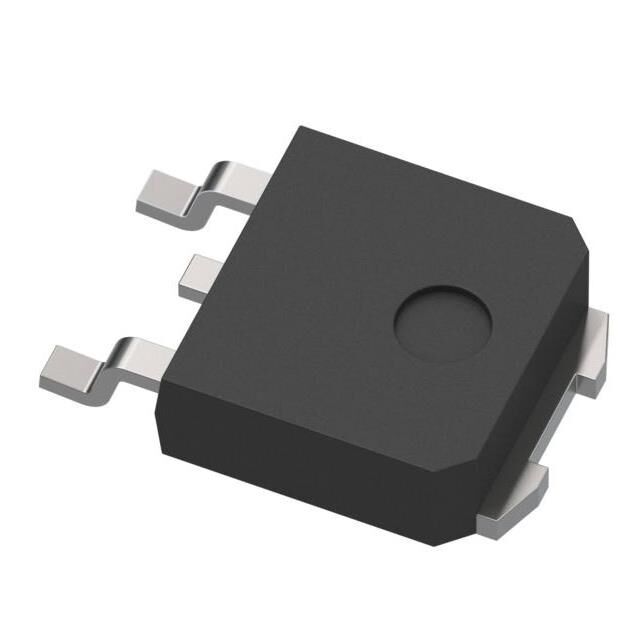

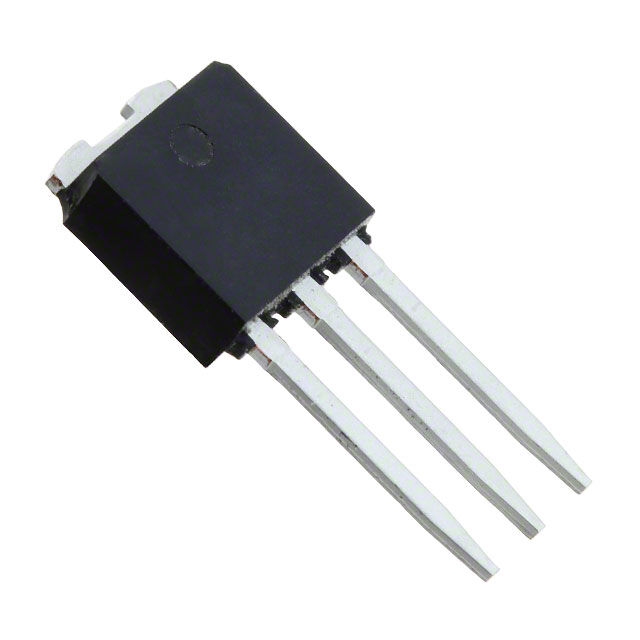

| Part Number | STGD7NB60ST4 | STGD7NB120S-1 | STGD7NB120ST4 | STGD7NC60HT4 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 600V 15A 55W DPAK | IGBT 1200V 10A 55W IPAK | IGBT 1200V 10A 55W DPAK | IGBT 600V 25A TO252 |
| Series | PowerMESH™ | PowerMESH™ | PowerMESH™ | PowerMESH™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
