STI10N62K3
lmages are for reference only.STI10N62K3
MOSFET N-CH 620V 8.4A I2PAK
DatasheetTO-262-3 Long Leads, I2PAK, TO-262AA
62,857 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 620 V 8.4A (Tc) 125W (Tc) Through Hole I2PAK
STI10N62K3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | STMicroelectronics |
| Series | SuperMESH3™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 620 V |
| Current - Continuous Drain (Id) @ 25°C | 8.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 750mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 100µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1250 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I2PAK |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Base Product Number | STI10N |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

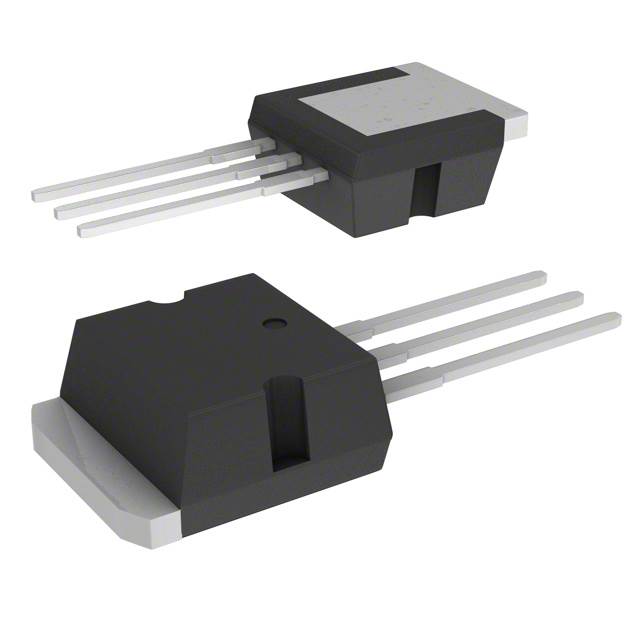

| Part Number | STI10NM60N | STI11NM60ND | STI11NM80 | STI12NM50N |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 600V 10A I2PAK | MOSFET N-CH 600V 10A I2PAK | MOSFET N-CH 800V 11A I2PAK | MOSFET N-CH 500V 11A I2PAK |
| Series | MDmesh™ II | FDmesh™ II | MDmesh™ | MDmesh™ II |
| Packaging | Tube | Tube | Tube | Tube |
