STIPN1M50T-H
lmages are for reference only.STIPN1M50T-H
SLLIMM-NANO SMALL LOW-LOSS INTEL
Datasheet26-PowerDIP Module (0.846", 21.48mm)
24,729 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Driver Module MOSFET 3 Phase Inverter 500 V 1 A 26-PowerDIP Module (0.846", 21.48mm)
STIPN1M50T-H
| Category | Discrete Semiconductor Products - Power Driver Modules - |
| Manufacturer | STMicroelectronics |
| Series | SLLIMM™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | MOSFET |
| Configuration | 3 Phase Inverter |
| Current | 1 A |
| Voltage | 500 V |
| Voltage - Isolation | 1000Vrms |
| Mounting Type | Through Hole |
| Package / Case | 26-PowerDIP Module (0.846", 21.48mm) |
| Grade | - |
| Qualification | - |
| Base Product Number | STIPN1 |
| Product Attribute |  |
 |
|
 |

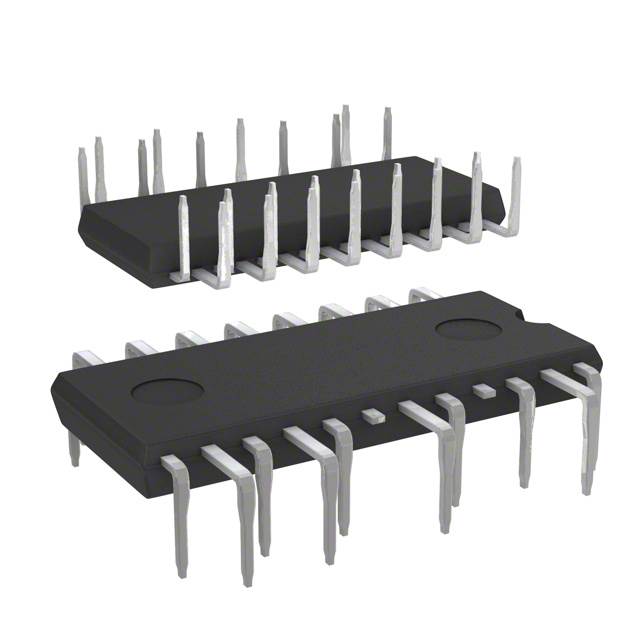

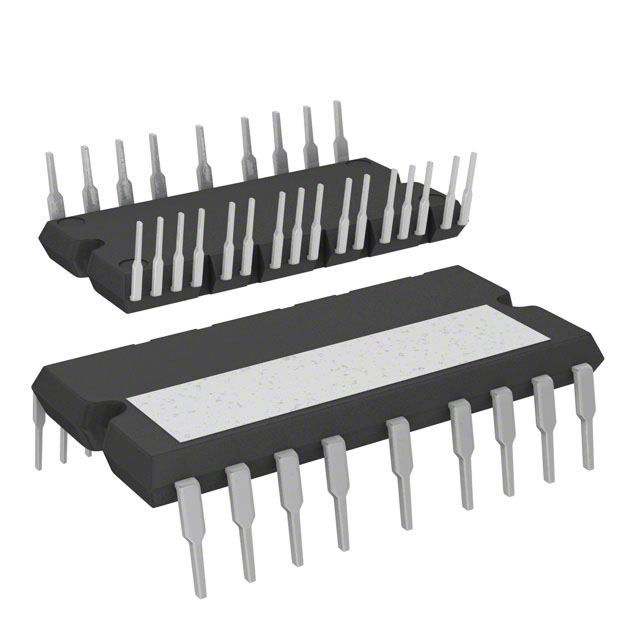

| Part Number | STIPN1M50-H | STIPQ3M60T-HZ | STGIB8CH60S-LZ | STGIPS10C60 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SLLIMM-NANO SMALL LOW-LOSS INTEL | SLLIMM-NANO 2ND SERIES IPM, 3-PH | DISCRETE | MOD IPM SLLIMM 10A 600V 25SDIP |
| Series | SLLIMM™ | SLLIMM™ | SLLIMM - 2nd | SLLIMM™ |
| Packaging | Tube | Tube | Bulk | Tube |
