STIPQ5M60T-HZ
lmages are for reference only.STIPQ5M60T-HZ
POWER TRANSISTORS
Datasheet26-PowerDIP Module (0.846", 21.48mm)
39,348 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Driver Module MOSFET 3 Phase Inverter 600 V 80 mA 26-PowerDIP Module (0.846", 21.48mm)
STIPQ5M60T-HZ
| Category | Discrete Semiconductor Products - Power Driver Modules - |
| Manufacturer | STMicroelectronics |
| Series | SLLIMM™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | MOSFET |
| Configuration | 3 Phase Inverter |
| Current | 80 mA |
| Voltage | 600 V |
| Voltage - Isolation | 1500Vrms |
| Mounting Type | Through Hole |
| Package / Case | 26-PowerDIP Module (0.846", 21.48mm) |
| Grade | - |
| Qualification | - |
| Base Product Number | STIPQ5 |
| Product Attribute |  |
 |
 |
|

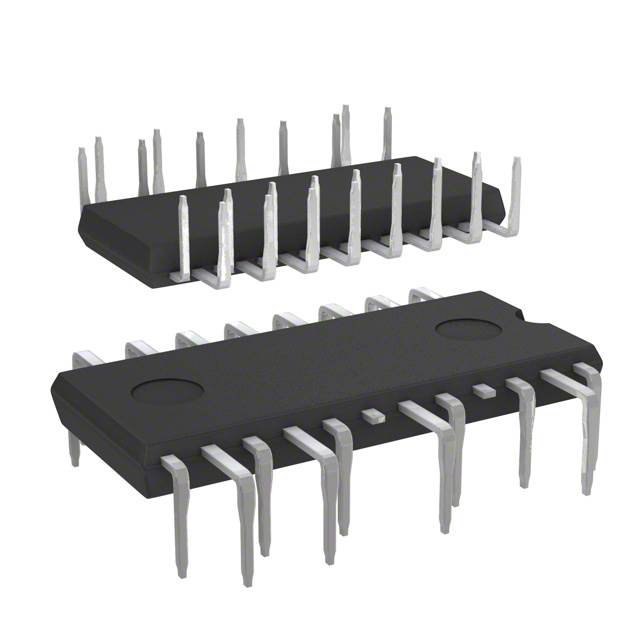

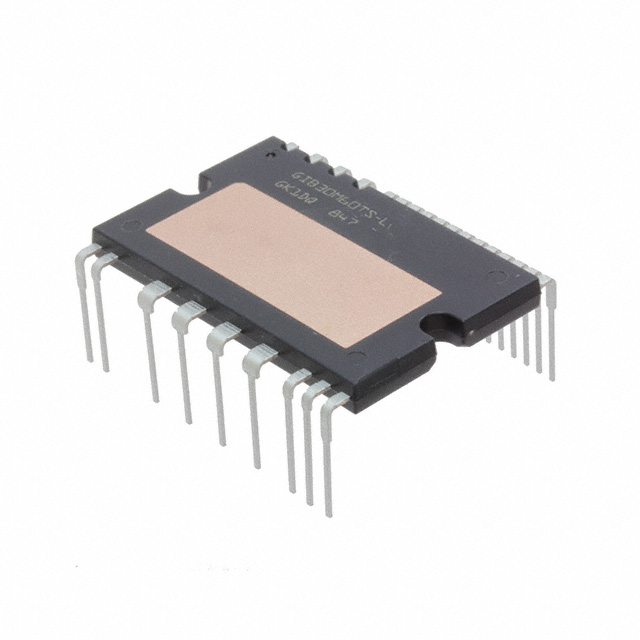

| Part Number | STIPQ5M60T-HL | STIB1060DM2T-L | STIB1060DM2T-LZ | STIB1560DM2-L |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | POWER TRANSISTORS | SLLIMM 2ND SERIES IPM, 3-PHASE I | DISCRETE | PTD HIGH VOLTAGE |
| Series | SLLIMM™ | SLLIMM™ | SLLIMM - 2nd | SLLIMM™ |
| Packaging | Tube | Tube | Bulk | Tube |
