Product CatalogPart Number
STMGFS80483R3
Manufacturer
Cosel USA, Inc.Description
DC/DC CONVERTER 3.3V 59W
Datasheet
DatasheetPackage
-
In Stock
78,988 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
STMGFS80483R3
STMGFS80483R3
lmages are for reference only.Payment Methods
Delivery Services
Enclosed DC DC Converter 1 Output 3.3V 18A 76V Input
Quick Inquiry
STMGFS80483R3
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - DC DC Converters - |
| Manufacturer | Cosel USA, Inc. |
| Series | STMG |
| Packaging | Bulk |
| RoHS Status | |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 76V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 18A |
| Power (Watts) | 59W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.61" L x 2.05" W x 1.14" H (117.1mm x 52.1mm x 29.0mm) |
| Approval Agency | CE |
| Standard Number | 62368-1 |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

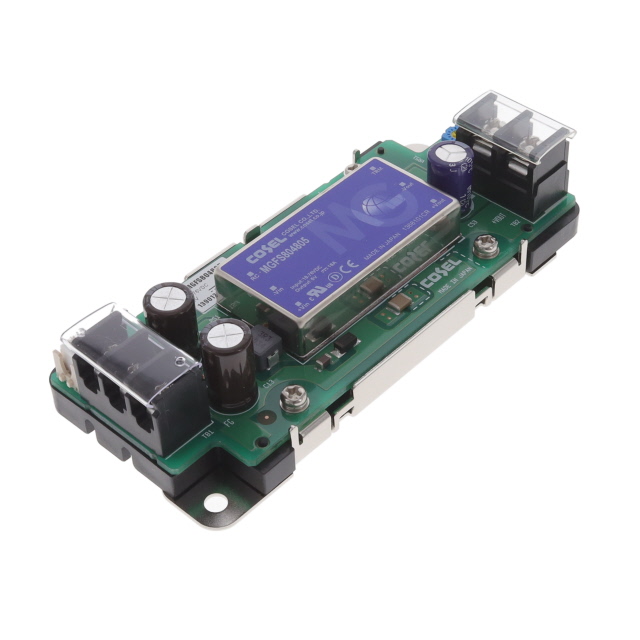

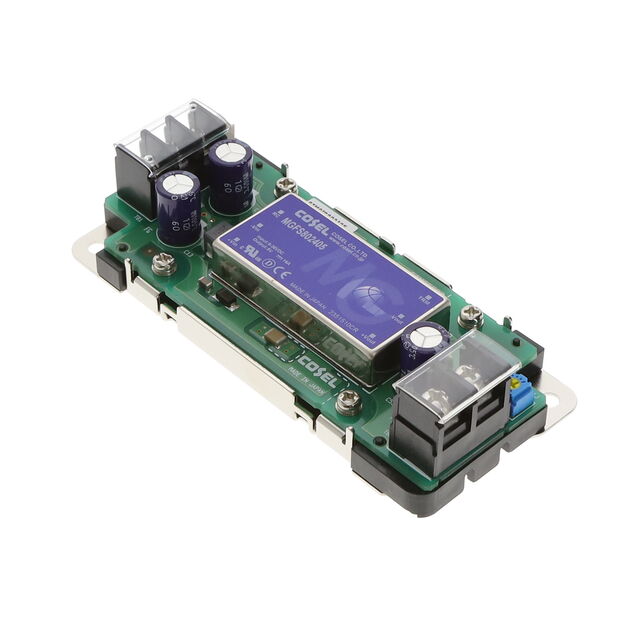

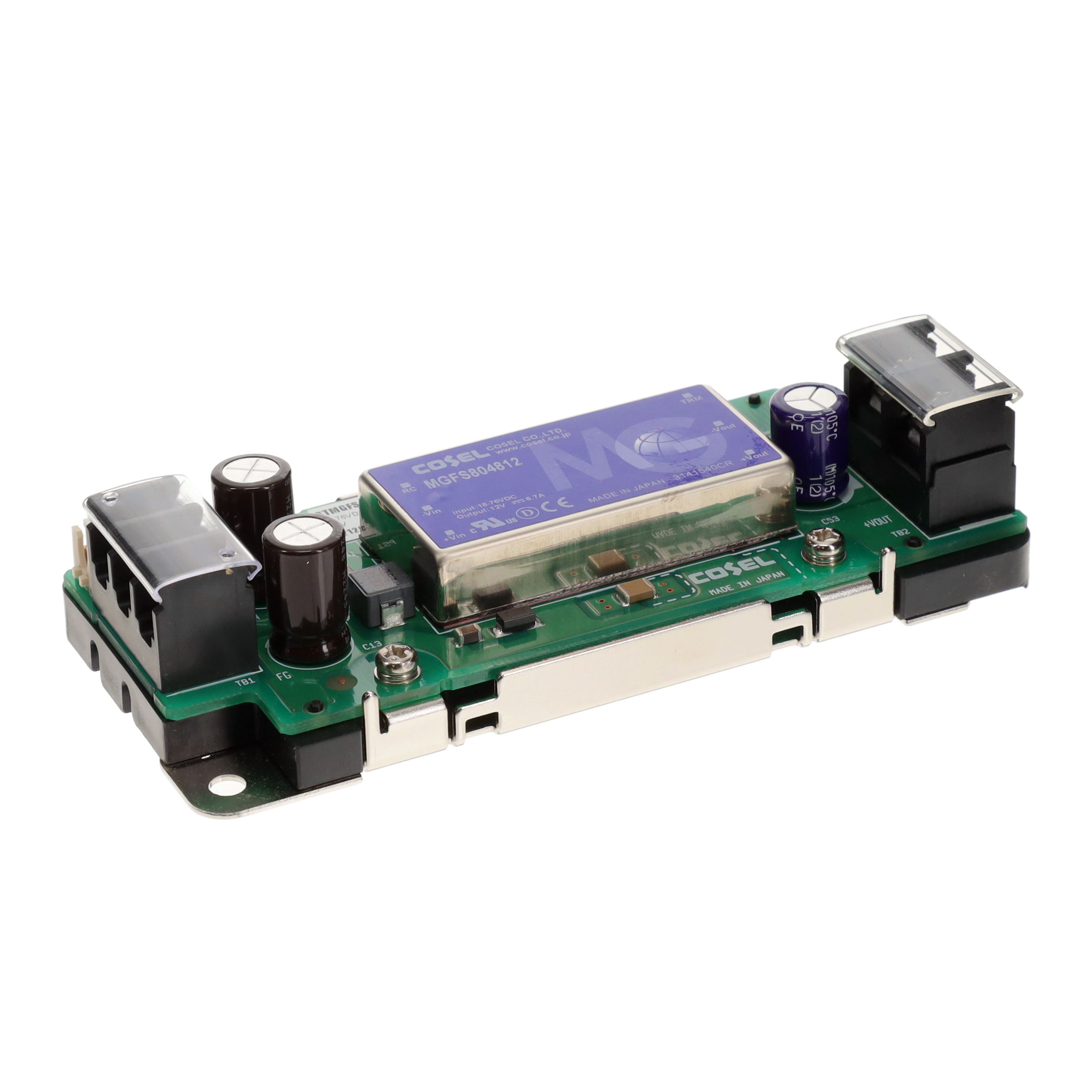

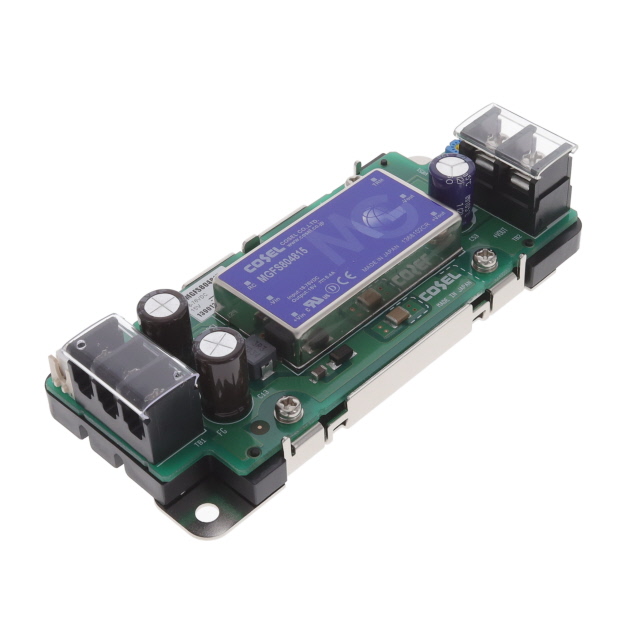

| Part Number | STMGFS804805 | STMGFS804812 | STMGFS804815 | STMGFS802405 |
| Manufacturer | Cosel USA, Inc. | Cosel USA, Inc. | Cosel USA, Inc. | Cosel USA, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC/DC CONVERTER 5V 80W | DC/DC CONVERTER 12V 80W | DC/DC CONVERTER 15V 81W | DC/DC CONVERTER 5V 80W |
| Series | STMG | STMG | STMG | STMG |
| Packaging | Bulk | Bulk | Bulk | Bulk |
