Product CatalogPart Number
STN2NE10L
Manufacturer
STMicroelectronicsDescription
MOSFET N-CH 100V 1.8A SOT-223
Datasheet
DatasheetPackage
TO-261-4, TO-261AA
In Stock
53,271 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
STN2NE10L
STN2NE10L
lmages are for reference only.Payment Methods
Delivery Services

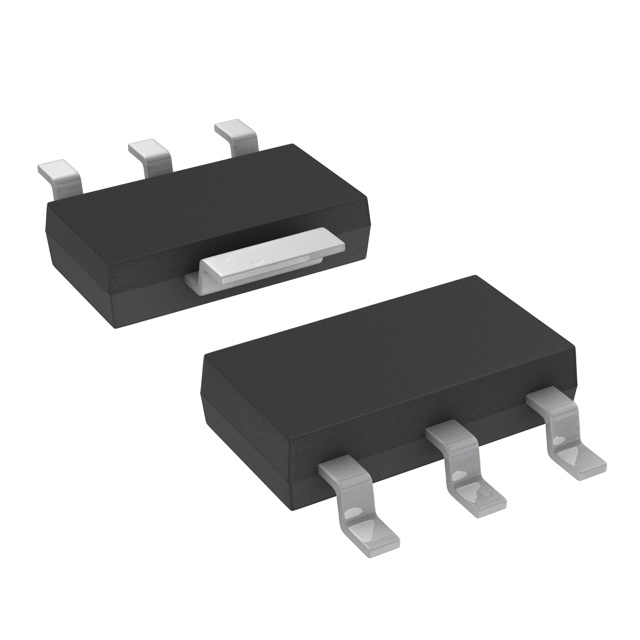

N-Channel 100 V 1.8A (Tc) 2.5W (Tc) Surface Mount SOT-223
Quick Inquiry
STN2NE10L
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | STMicroelectronics |
| Series | STripFET™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 1.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 400mOhm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 345 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-223 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | STN2N |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 5 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | STN2NE10 | STN1HNK60 | STN1N20 | STN1NF10 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 100V 2A SOT-223 | MOSFET N-CH 600V 400MA SOT223 | MOSFET N-CH 200V 1A SOT223 | MOSFET N-CH 100V 1A SOT-223 |
| Series | STripFET™ | SuperMESH™ | MESH OVERLAY™ | STripFET™ II |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
