STP11NK40ZFP

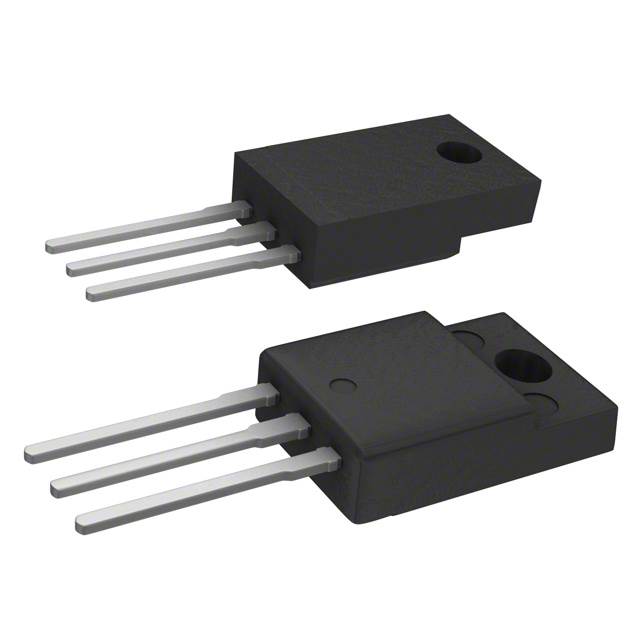

lmages are for reference only.STP11NK40ZFP
MOSFET N-CH 400V 9A TO220FP
DatasheetTO-220-3 Full Pack
46,741 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 400 V 9A (Tc) 30W (Tc) Through Hole TO-220FP
STP11NK40ZFP
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | STMicroelectronics |
| Series | SuperMESH™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 400 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 4.5A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 100µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 930 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 30W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220FP |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | STP11 |
| Gate Charge (Qg) (Max) @ Vgs | 32 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

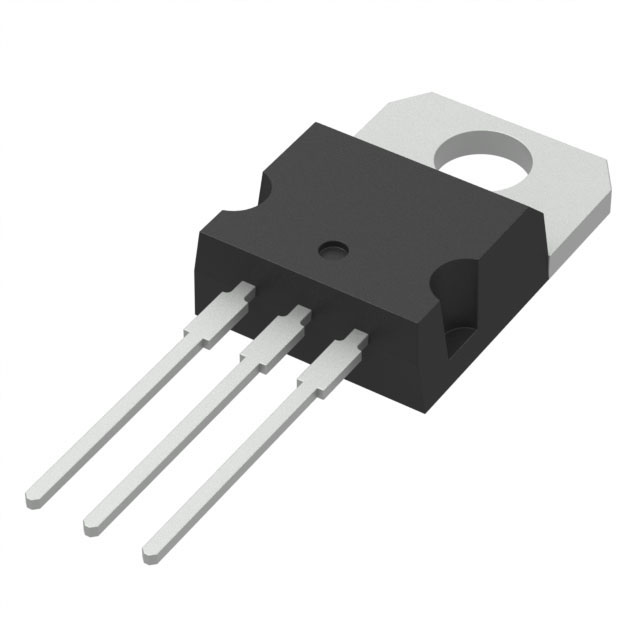

| Part Number | STP11NK40Z | STP11N52K3 | STP11N60DM2 | STP11N65M2 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 400V 9A TO220AB | MOSFET N-CH 525V 10A TO220 | MOSFET N-CH 600V 10A TO220 | MOSFET N-CH 650V 7A TO220 |
| Series | SuperMESH™ | SuperMESH3™ | MDmesh™ DM2 | MDmesh™ II Plus |
| Packaging | Tube | Tube | Tube | Tube |
