Product CatalogPart Number
STP30N10F7
Manufacturer
STMicroelectronicsDescription
MOSFET N-CH 100V 32A TO220AB
Datasheet
DatasheetPackage
TO-220-3
In Stock
35,609 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
STP30N10F7
STP30N10F7
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 100 V 32A (Tc) 50W (Tc) Through Hole TO-220AB
Quick Inquiry
STP30N10F7
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | STMicroelectronics |
| Series | STripFET™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 32A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1270 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 50W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
| Base Product Number | STP30 |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | STP300NH02L | STP30N20 | STP30N65DM6AG | STP30N65M5 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 24V 120A TO220AB | MOSFET N-CH 200V 30A TO220AB | DISCRETE | MOSFET N-CH 650V 22A TO220AB |
| Series | STripFET™ | STripFET™ | - | MDmesh™ V |
| Packaging | Tube | Tube | Bulk | Tube |
Customers Also Interested in
Recommended Products
STP300NH02L
STMicroelectronics
STP30N20
STMicroelectronics

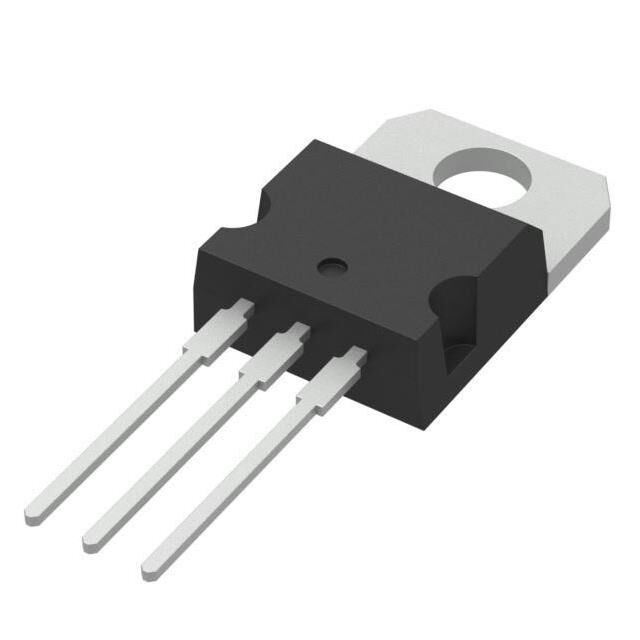

STP30N65DM6AG
