STS232240B151
lmages are for reference only.STS232240B151
TVS DIODE 24VWM 60VC SOT23
DatasheetTO-236-3, SC-59, SOT-23-3
45,930 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
60V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23
STS232240B151
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | ST |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Voltage - Breakdown (Min) | 26.7V |
| Voltage - Clamping (Max) @ Ipp | 60V |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) |
| Power - Peak Pulse | 350W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 15pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

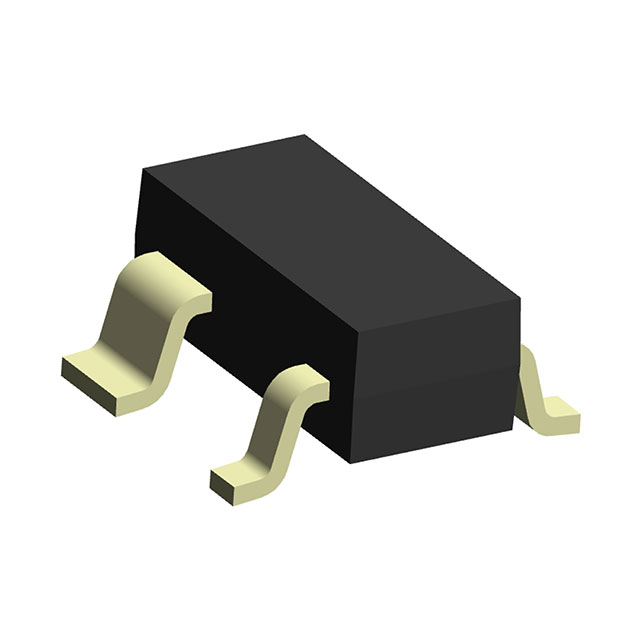

| Part Number | STS232240B151AH | STS232240U301 | STS142050UL08 | STS142700UL55 |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | TVS DIODE 24VWM 60VC SOT23 | TVS DIODE 24VWM 55VC SOT23 | TVS DIODE 5VWM 20VC SOT143 | TVS DIODE 70VWM 9VC SOT143 |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
