STS521360U201

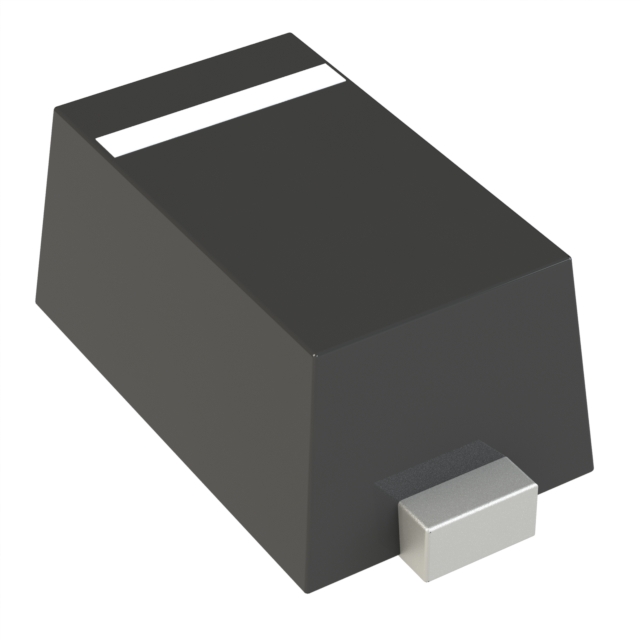

lmages are for reference only.STS521360U201
TVS DIODE 36VWM 55VC SOD523
DatasheetSC-79, SOD-523
71,587 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
55V Clamp Ipp Tvs Diode Surface Mount SOD-523
STS521360U201
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | ST |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 36V (Max) |
| Voltage - Breakdown (Min) | 40V |
| Voltage - Clamping (Max) @ Ipp | 55V |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | 120W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 20pF @ 1MHz (Max) |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | STS521360U201AH | STS521360U221AH | STS142050UL08 | STS142700UL55 |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | TVS DIODE 36VWM 55VC SOD523 | TVS DIODE 36VWM 55VC SOD523 | TVS DIODE 5VWM 20VC SOT143 | TVS DIODE 70VWM 9VC SOT143 |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
