Product CatalogPart Number
STTH10002TV1
Manufacturer
STMicroelectronicsDescription
DIODE MODULE GP 200V 50A ISOTOP
Datasheet
DatasheetPackage
ISOTOP
In Stock
65,592 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

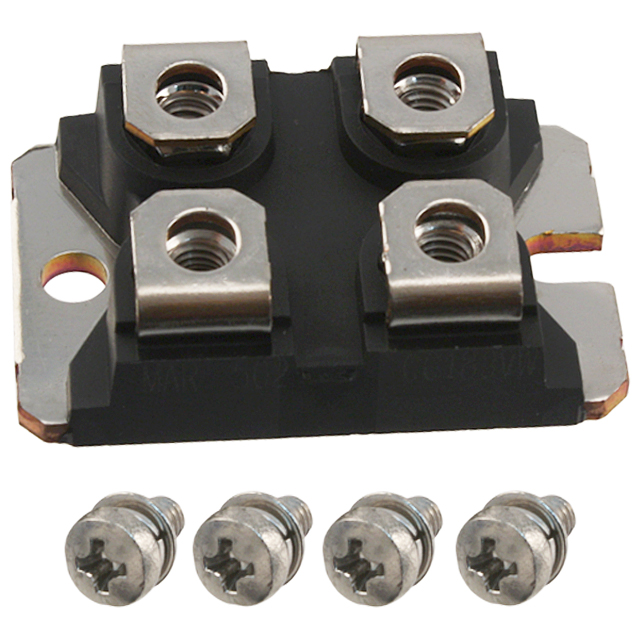

STTH10002TV1
STTH10002TV1
lmages are for reference only.Payment Methods
Delivery Services
Diode Array 2 Independent 200 V 50A Chassis Mount ISOTOP
Quick Inquiry
STTH10002TV1
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 2 Independent |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) (per Diode) | 50A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 50 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 50 µA @ 200 V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Chassis Mount |
| Package / Case | ISOTOP |
| Supplier Device Package | ISOTOP® |
| Base Product Number | STTH10002 |
| Reverse Recovery Time (trr) | 65 ns |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | STTH10002TV2 | STTH1002CB | STTH1002CB-TR | STTH1002CBY-TR |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE MODULE GP 200V 50A ISOTOP | DIODE ARRAY GP 200V 8A DPAK | DIODE ARRAY GP 200V 8A DPAK | DIODE ARRAY GP 200V 8A DPAK |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
STTH10002TV2
STMicroelectronics
STTH1002CB
STMicroelectronics
STTH1002CB-TR
STMicroelectronics

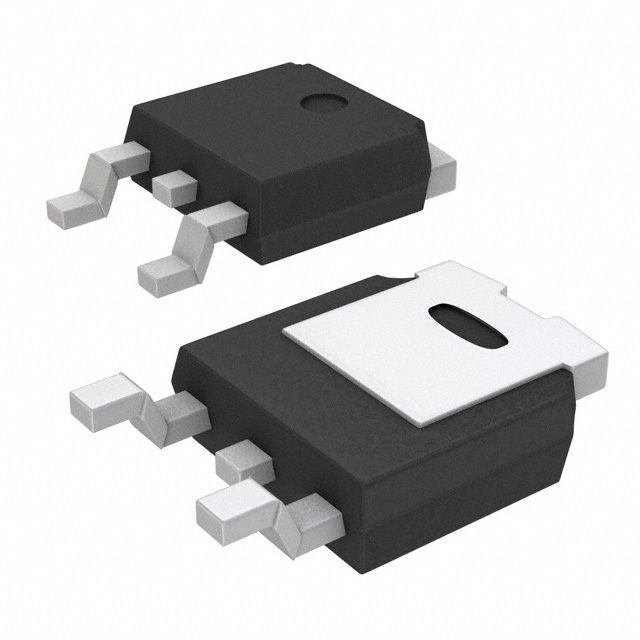

STTH1002CBY-TR
STMicroelectronics
STTH1002CFP
STMicroelectronics
STTH1002CG
STMicroelectronics
STTH1002CG-TR
STMicroelectronics
STTH1002CGY-TR
STMicroelectronics

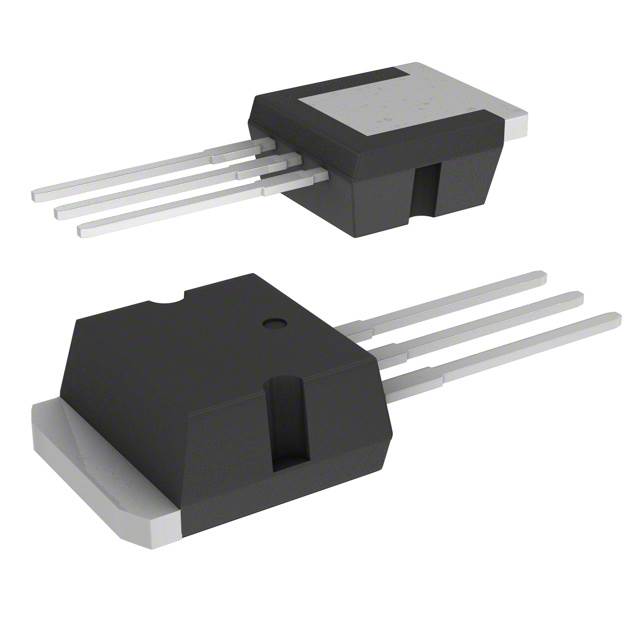

STTH1002CR
STMicroelectronics
STTH1002CSF
STMicroelectronics
STTH1002CSFY
STMicroelectronics
STTH1002CT
STMicroelectronics
STTH1003G
STMicroelectronics
STTH1008DTI
STMicroelectronics
STTH100W04CW
STMicroelectronics

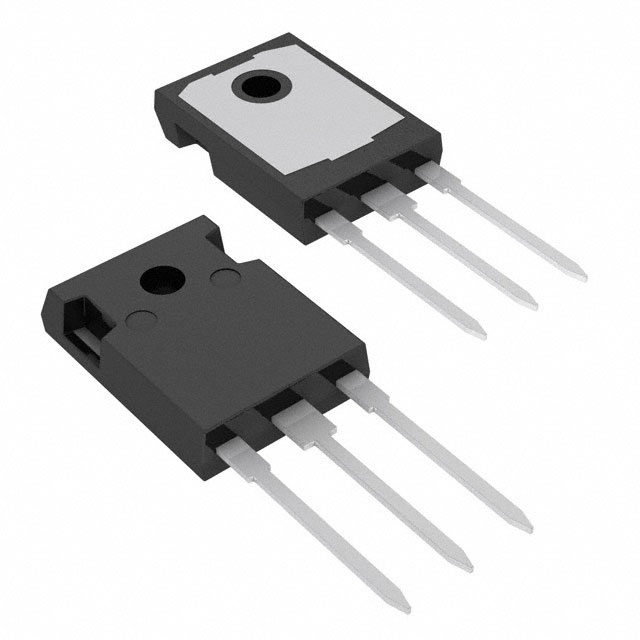

STTH100W06CW
